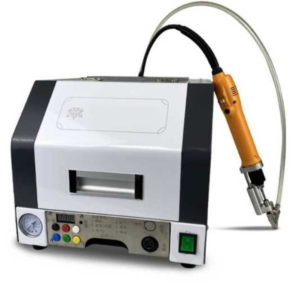

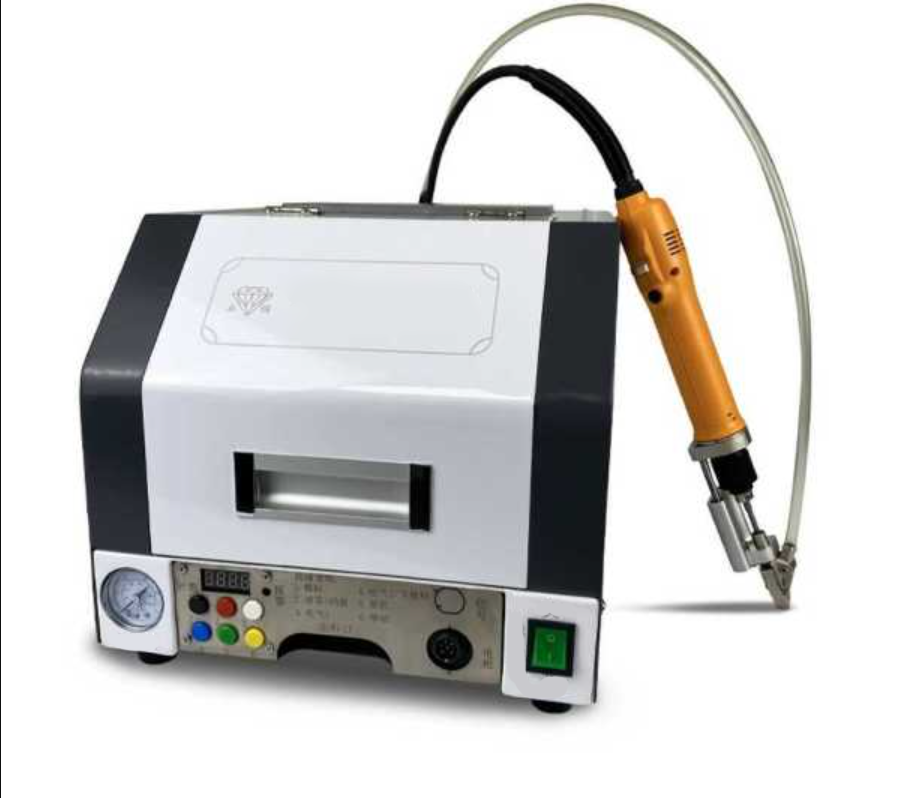

Autofeeding Screwdrivers YH-T20
$ 1,260.00
United States dollar ($) - USD
EXW Factory
Final quotation is subject to final confirmation and specifications.
Key Features and Technologies
- Dual Sensors – No Double Feeding: Equipped with dual sensors to ensure that only one screw is fed per operation, preventing errors such as double feeding or misalignment.
- 100% Jam-Free Operation: The advanced feeding mechanism eliminates jamming issues, a common problem in traditional manual and semi-automatic screw feeding systems.
- Turbine Feeding Mechanism: Utilizes a compact, quiet turbine system that requires less maintenance and provides consistent performance, ideal for noise-sensitive environments.
- Durable Metal Screw Bin: Constructed from wear-resistant metal to prevent damage to screw surfaces during long-term use. The bin can be mounted on a workbench or robot arm to save space.
- Smart Refill Alert System: The machine is equipped with an intelligent alert that notifies the operator when screws are running low, ensuring continuous production with minimal downtime.
- Highly Customizable & Scalable: Compatible with various setups, including:
-
- Robot-assisted screwdriver systems
- Y-axis desktop screwdriver machines
- Customized screw feeding stations to match your specific production layout
Product overview
In the era of Industry 4.0, the integration of automated assembly systems has become crucial for manufacturers striving to enhance productivity, ensure product quality, and minimize labor costs.
To empower enterprises in their digital transformation journey, JIT Asia introduces the Autofeeding Screwdriver System YH-T20 — an intelligent, fully automated fastening solution that streamlines screw feeding, transport, and tightening with exceptional precision, speed, and flexibility.
Engineered for modern production environments, the YH-T20 delivers reliable performance, consistent torque accuracy, and smooth operation — making it an ideal choice for electronics, automotive, and precision device assembly.
Product Manual
Manual – Auto feeding screw machine
CTL – Autofeeding Screwdriver
Technical specifications
| Specification | Details |
| Feeder weight | 16.5 kg |
| Feeding unit dimensions | 36 x 30 x 26 cm |
| Power supply | 220V / 50Hz |
| Air pressure requirement | 0.5 – 0.6 MPa |
| Power consumption | Approximately 150W |

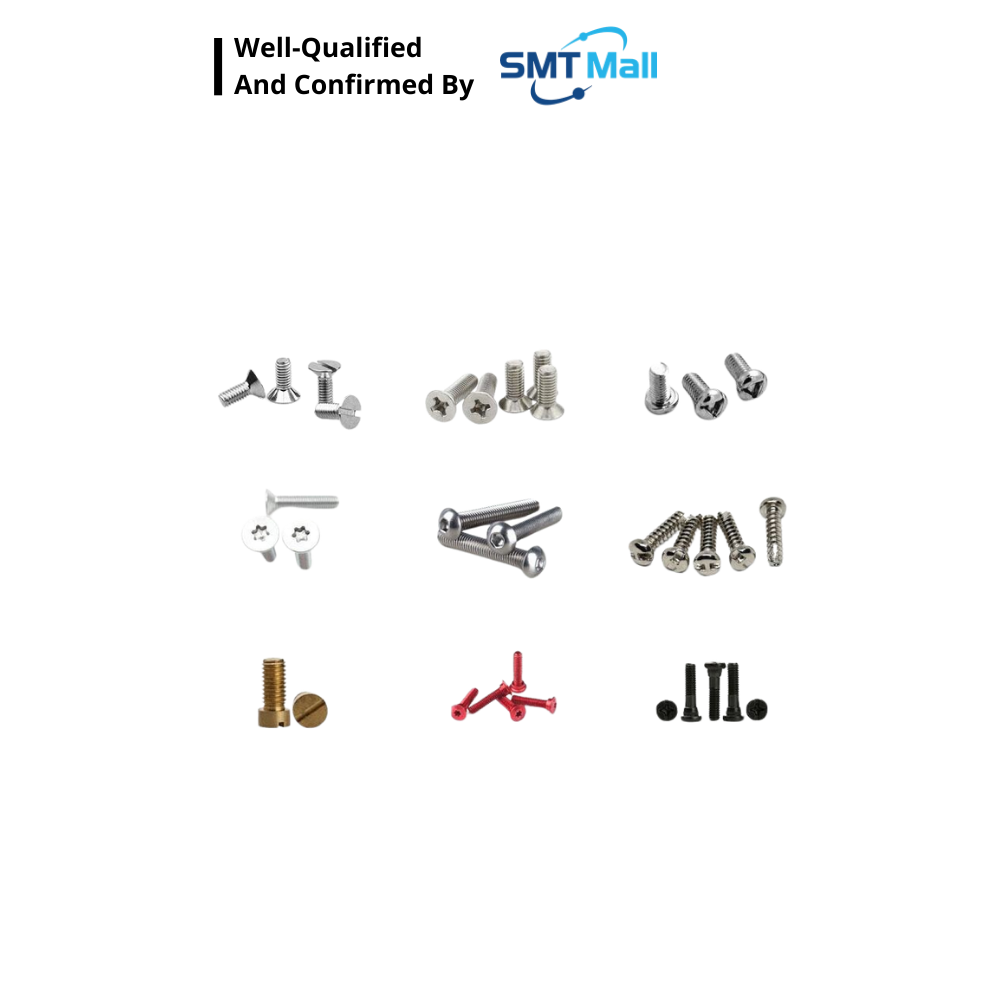

| Supported screw sizes | M2 – M4 |
| Screw silo capacity | 3 bins × 10 = up to 30,000 screws |
| Feeding speed | 0.5 – 0.75 seconds per screw |
| Screw conveying distance | 2 – 4 meters |
Applications
-
Electronics Assembly: Suitable for screw-locking in PCB boards, small modules, consumer electronics, and mobile device components.
-
Home Appliances: Used for assembling small household devices such as fans, juicers, controllers, and other plastic housings.
-
LED & Lighting Products: Ideal for fastening screws in LED lamps, drivers, and aluminum housings.
-
Toys & Small Machinery: Supports high-speed screw fastening in plastic or metal toy parts and compact mechanical structures.
-
Communication Equipment: Applicable to routers, adapters, network devices, and other telecom components.
-
General Production Lines: Any assembly line requiring repetitive screw fastening to improve efficiency and ensure consistent torque quality.
