CHUERA-100XP Smoke Extractor – Efficient Smoke & Odor Filtration for Health Protection

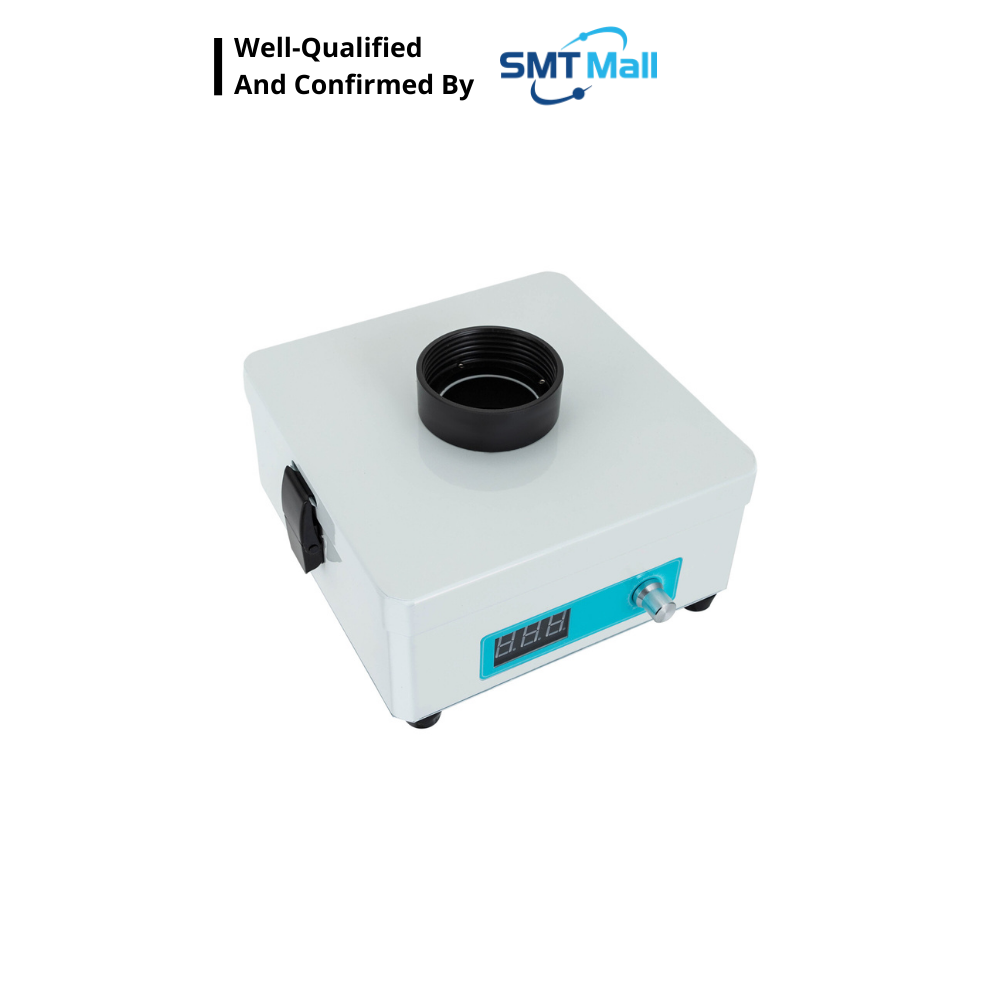

The CHUERA-100XP is a compact desktop smoke extractor, featuring a lightweight design and quiet operation.
It is ideal for technicians, DIY users, laboratories, and even home kitchens.

🌟 Key Features:

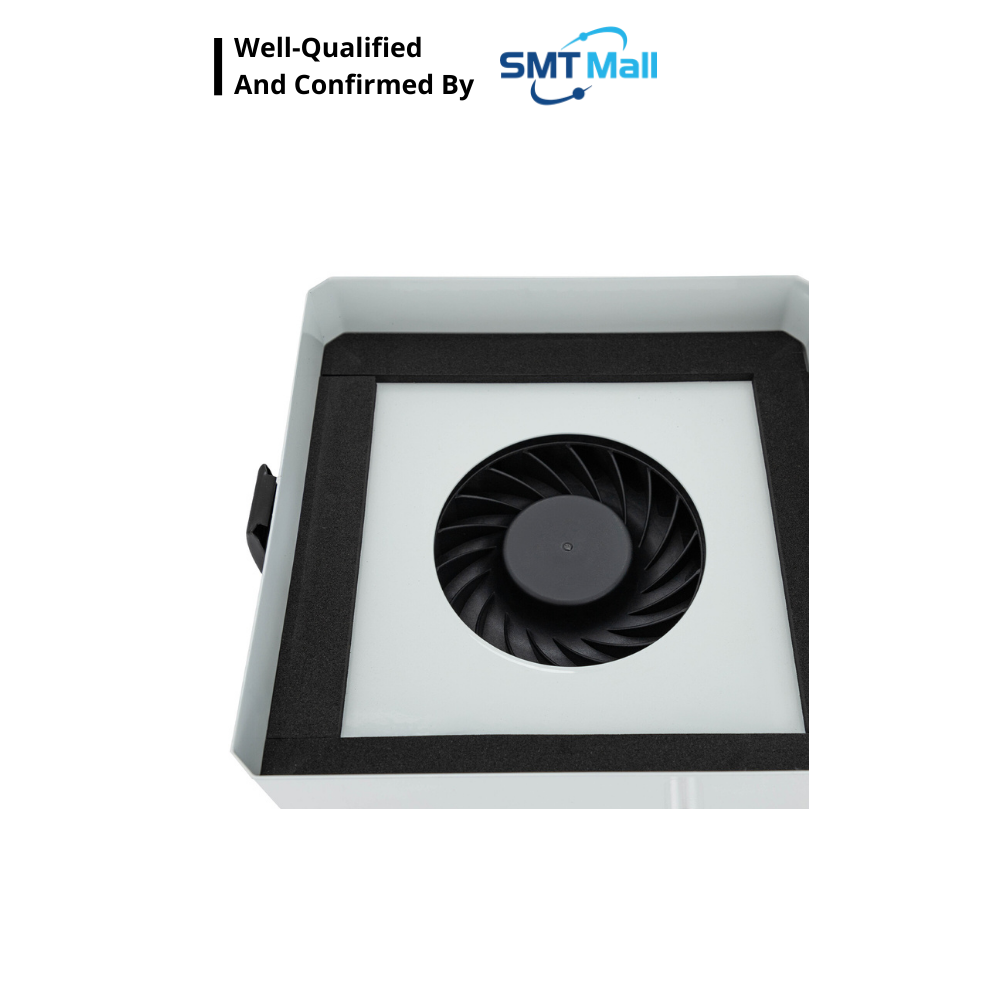

• ✅ High-efficiency 3-stage filtration system: pre-filter cotton, HEPA filter, and activated carbon, removing up to 99.9% of smoke, dust, grease odors, solder fumes, and gas heating odors

• ✅ Energy-saving design with only 15W power consumption, suitable for continuous operation

• ✅ Compact and portable, perfect for placement on workbenches or kitchen countertops

• ✅ Low-noise operation, comfortable for long-term use

• ✅ Modern digital LED display for clear operating status visibility

• ✅ Adjustable suction speed, adaptable to various usage needs

🔧 Technical Specifications:

• Voltage: AC 220V / AC 110V

• Power: 15W

• Dimensions: 185 × 185 × 188 mm

• Weight: 1.8 kg

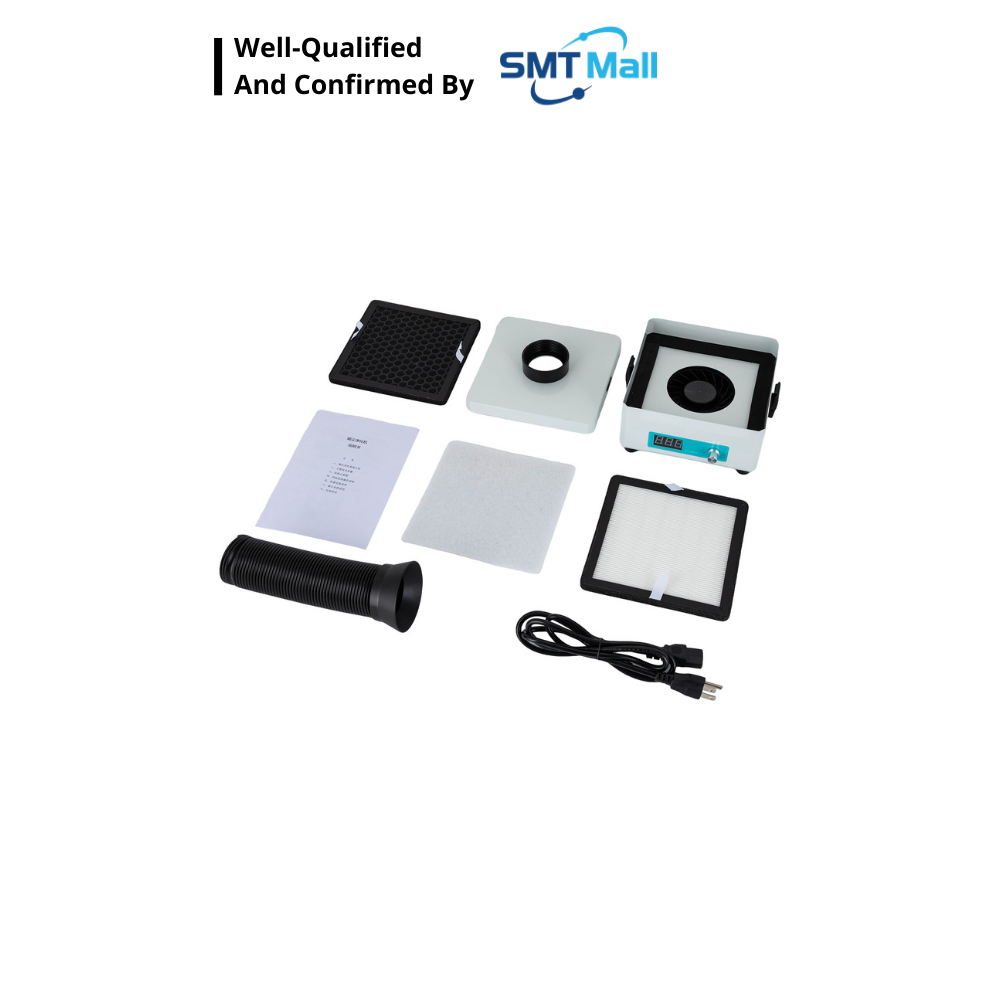

📦 Package Includes:

• Main unit

• Flexible smoke extraction hose

• 1 pre-filter cotton pad (included)

• Power adapter

🧪 Practical Applications:

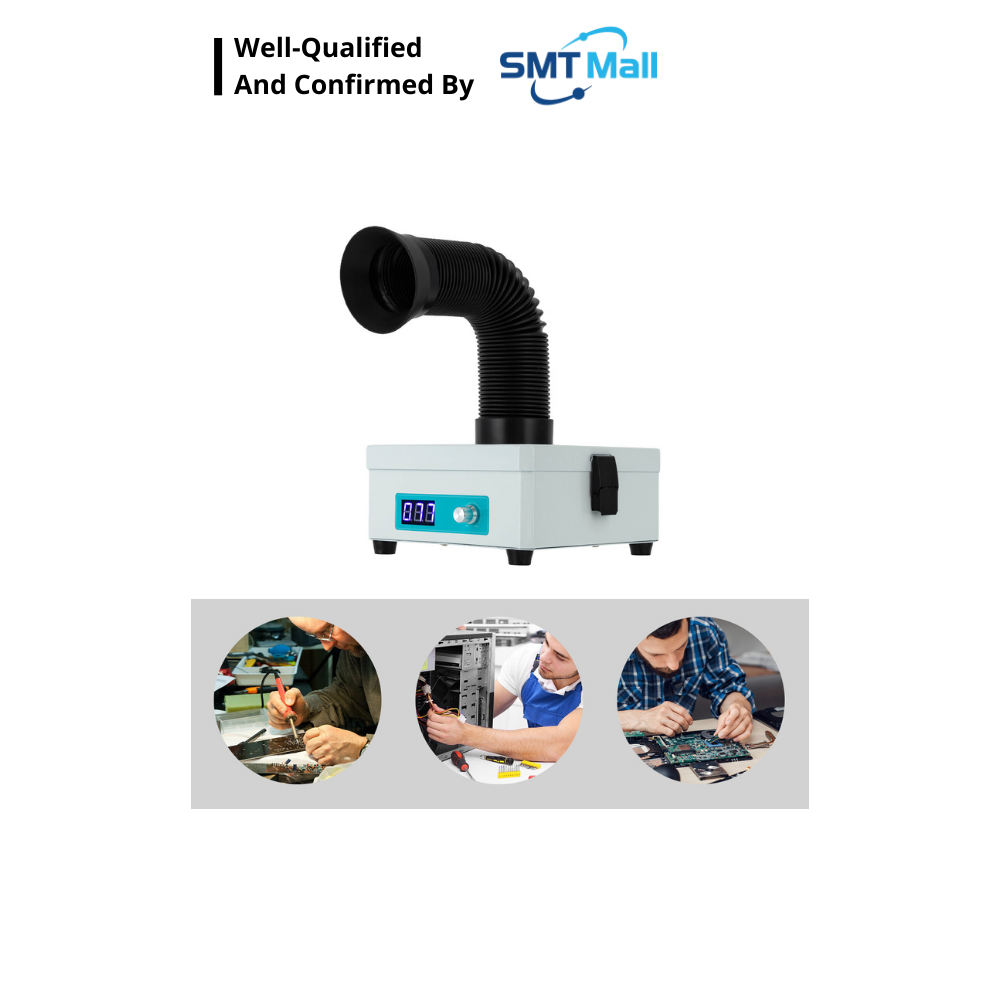

• ✔ Extraction of electronic soldering fumes and PCB smoke

• ✔ Removal of IC hot-air rework fumes, DIY soldering smoke, adhesive odors

• ✔ Suitable for laboratories, mobile phone repair shops, technical workspaces

• ✔ Kitchen smoke and grease odor removal, no complex installation required
