CHUERA 200XP-1 / 200XP-2 Fume Extractor – An Optimal Solution for a Clean and Safe Working Environment

The CHUERA 200XP-1 / 200XP-2 fume extractor is an ideal solution for maintaining a clean, safe, and healthy workspace.
With its compact design and high filtration efficiency, it is suitable for use in electronics manufacturing, mechanical workshops, stainless steel welding, laser processing, and laboratories.

✅ Key Features:

• Durable metal housing, vibration-resistant and impact-resistant

• Compact footprint, easy to move and space-saving

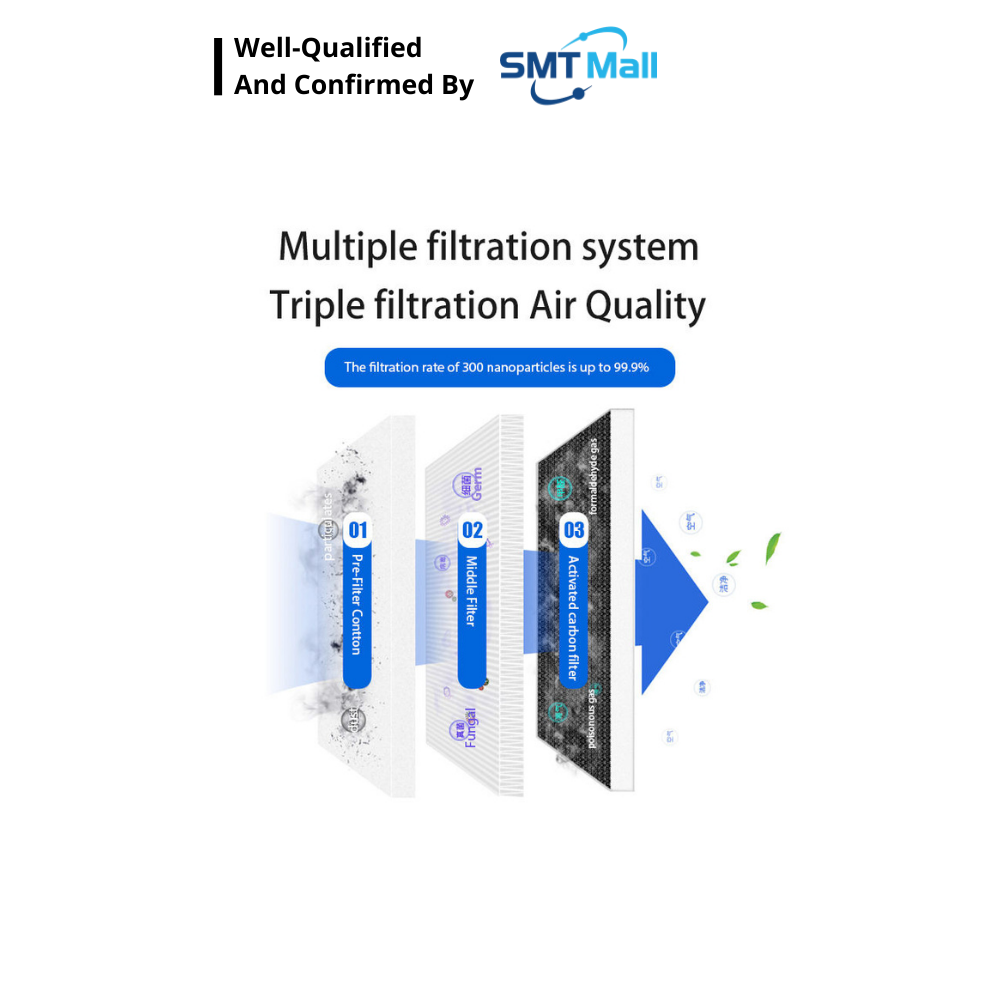

• Customizable 3-stage filtration system: primary filter cotton, HEPA filter, and activated carbon, removing up to 99.97% of fine dust, odors, and toxic gases

• High-durability brushless fan, quiet operation (< 56 dB)

• PU caster wheels for smooth and silent mobility

• Interchangeable suction nozzles, suitable for various applications (round hose, silicone hood, transparent PC hood, etc.)

• Strong airflow capacity: ≥ 330 m³/h

📦 Technical Specifications:

• Model: 200XP-1 (Single Arm) / 200XP-2 (Dual Arm)

• Power supply: AC 220V

• Power consumption: 275W

• Dimensions: 425 × 410 mm

• Weight: 15–19 kg (depending on version)

• Noise level: ≤ 56 dB

• Extraction arm length: 1.4 m (customizable)

• Filtration efficiency: ≥ 30 μm (99.97%)

🧪 Practical Applications:

• ✔ Extraction of electronic soldering fumes and PCB smoke

• ✔ Removal of IC hot-air rework fumes, DIY soldering smoke, and adhesive odors

• ✔ Suitable for laboratories, mobile phone repair shops, and technical rooms

• ✔ Kitchen smoke and grease odor removal, no complex installation required

See also: CHUERA 8502D Hot Air Rework Station , JIT-Asia
