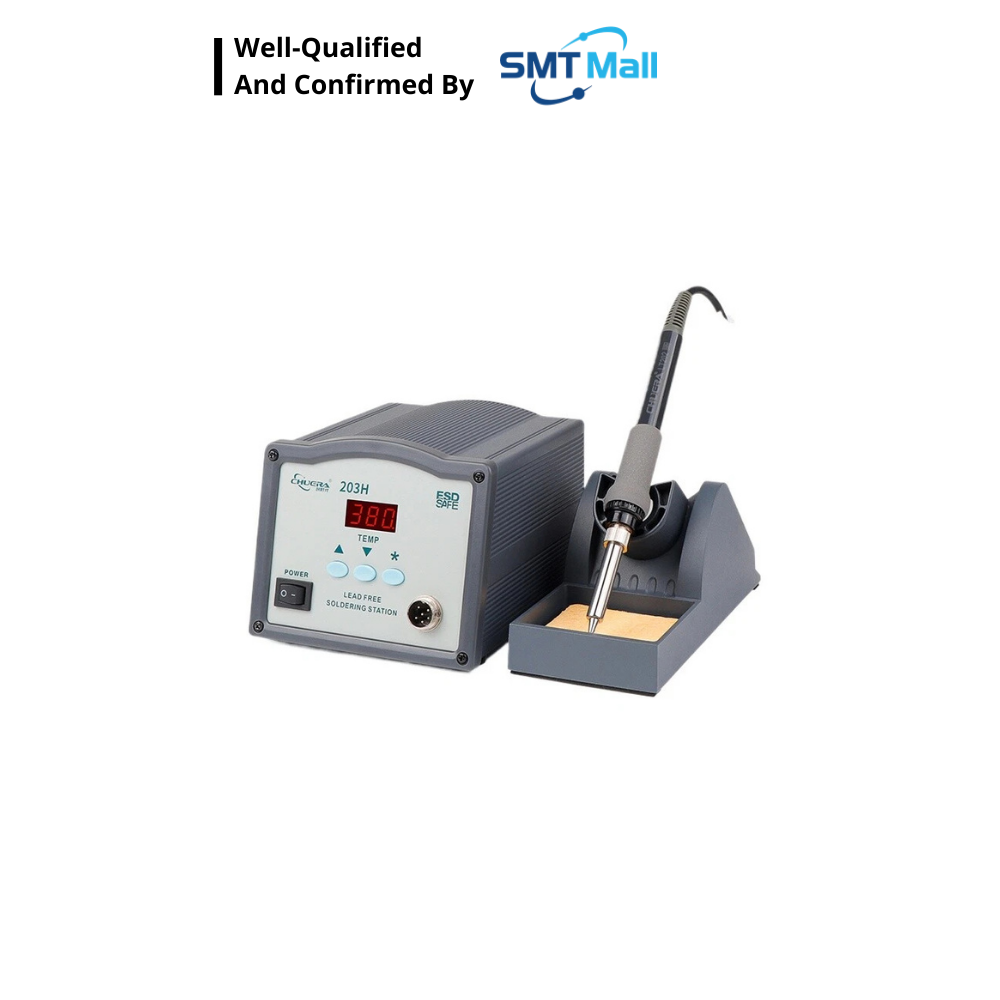

🌟 KEY FEATURES CHUERA 203H:

• Powerful 90W output for fast heating and time-saving operation.

• Digital temperature control, easy to use with high accuracy (±2 °C).

• Smart temperature sensor ensures stable heat, protecting sensitive electronic components.

• Password-based temperature lock – safe and reliable for factory and production environments.

• Automatic sleep mode to save energy when not in use.

• Supports multiple soldering tip types (Straight, Knife, Needle) to meet various soldering needs.

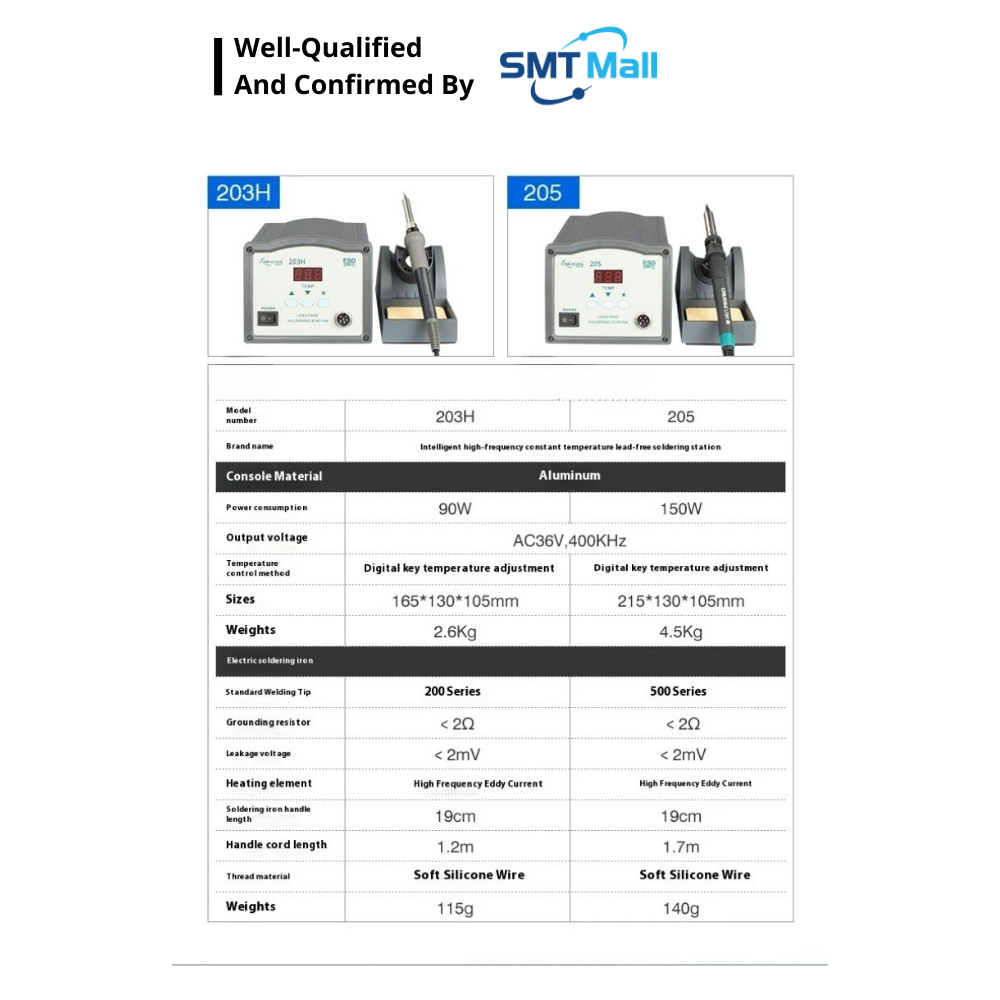

💡 TECHNICAL SPECIFICATIONS:

• Model: Chuera-203H

• Adjustable temperature range: 50 °C – 600 °C

• Power supply: 220V / 50Hz or 120V

• Dimensions: 24 × 23 × 13 cm

• Weight: 3.3 kg (Net), 3.5 kg (Gross)

• Temperature accuracy: ±2 °C

• Tip-to-ground voltage: < 2 mV, resistance: < 2 Ω

🔧 APPLICATIONS:

• PCBA, BGA, and SMD repair and soldering

• Suitable for home use, manufacturing plants, and professional electronics repair centers

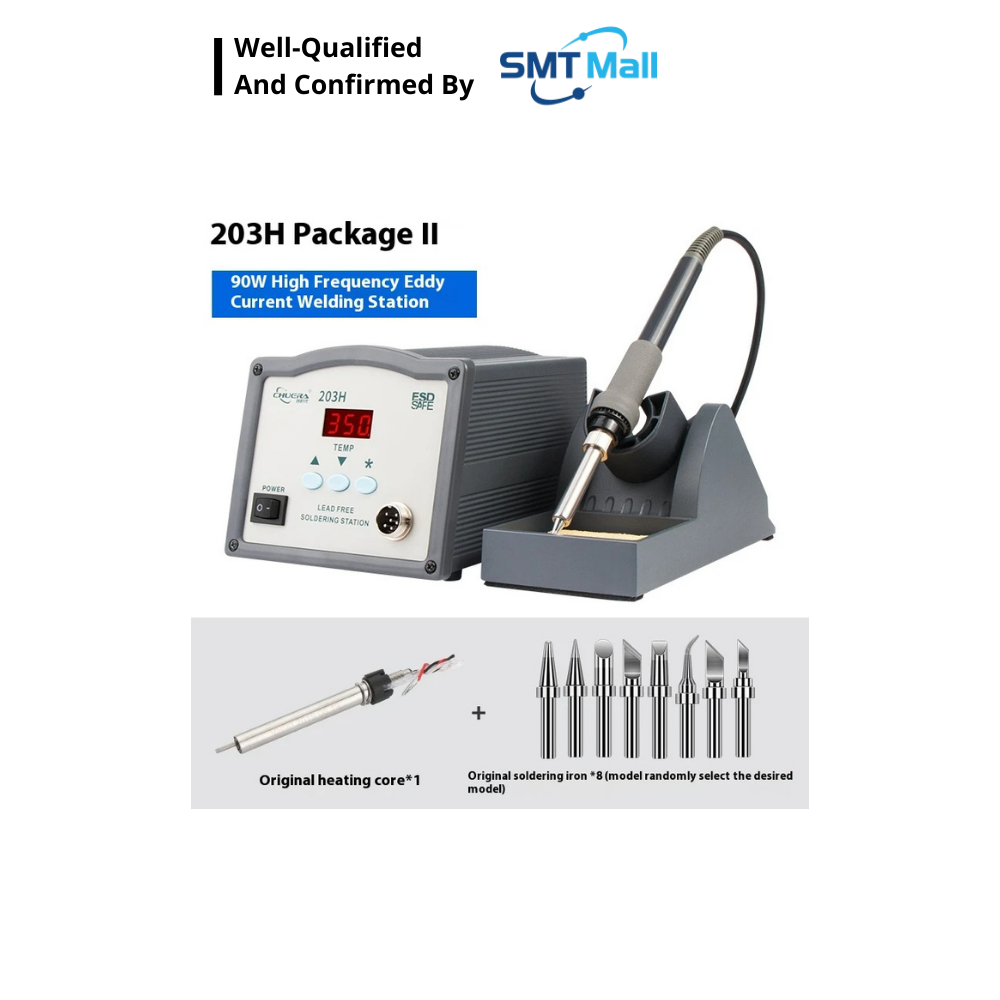

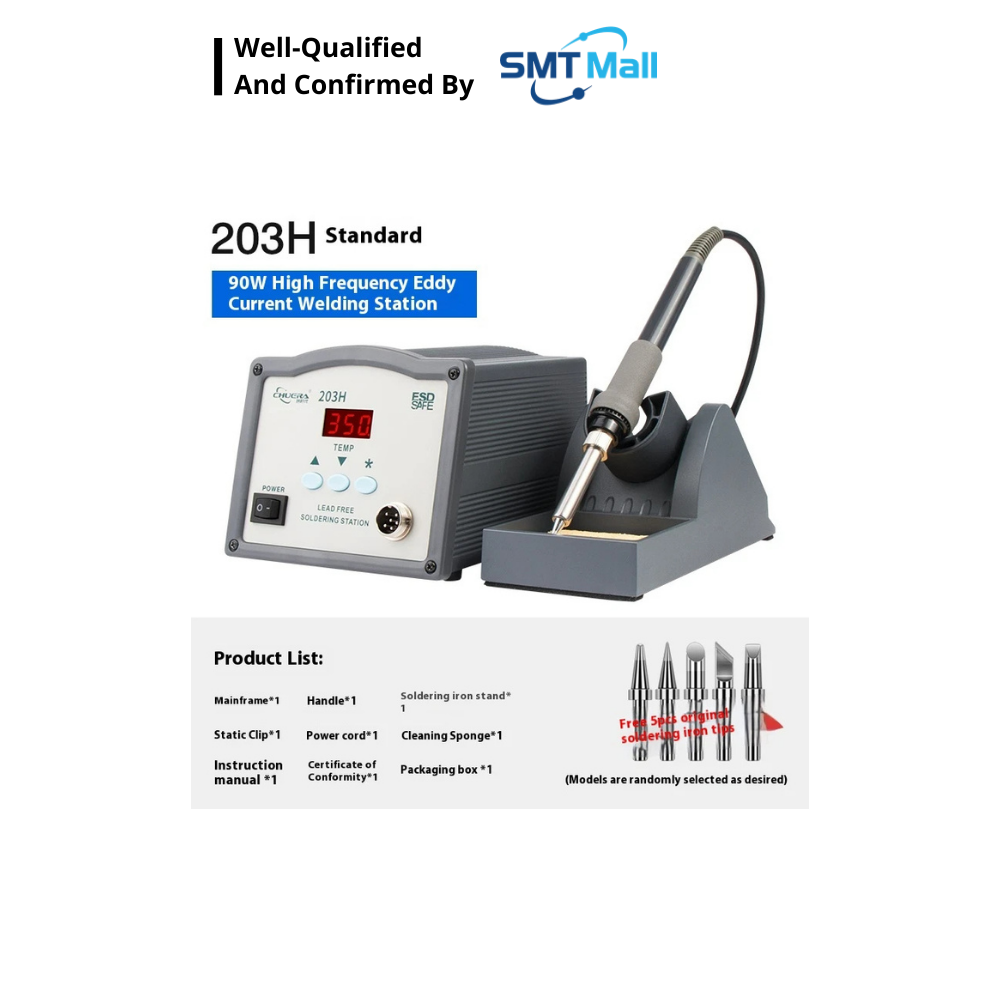

📦 PACKAGE INCLUDES CHUERA 203H:

• 1 × 203H Soldering Station

• 1 × Soldering Iron Handle

• 1 × Assorted Soldering Tips Set

• 1 × User Manual
