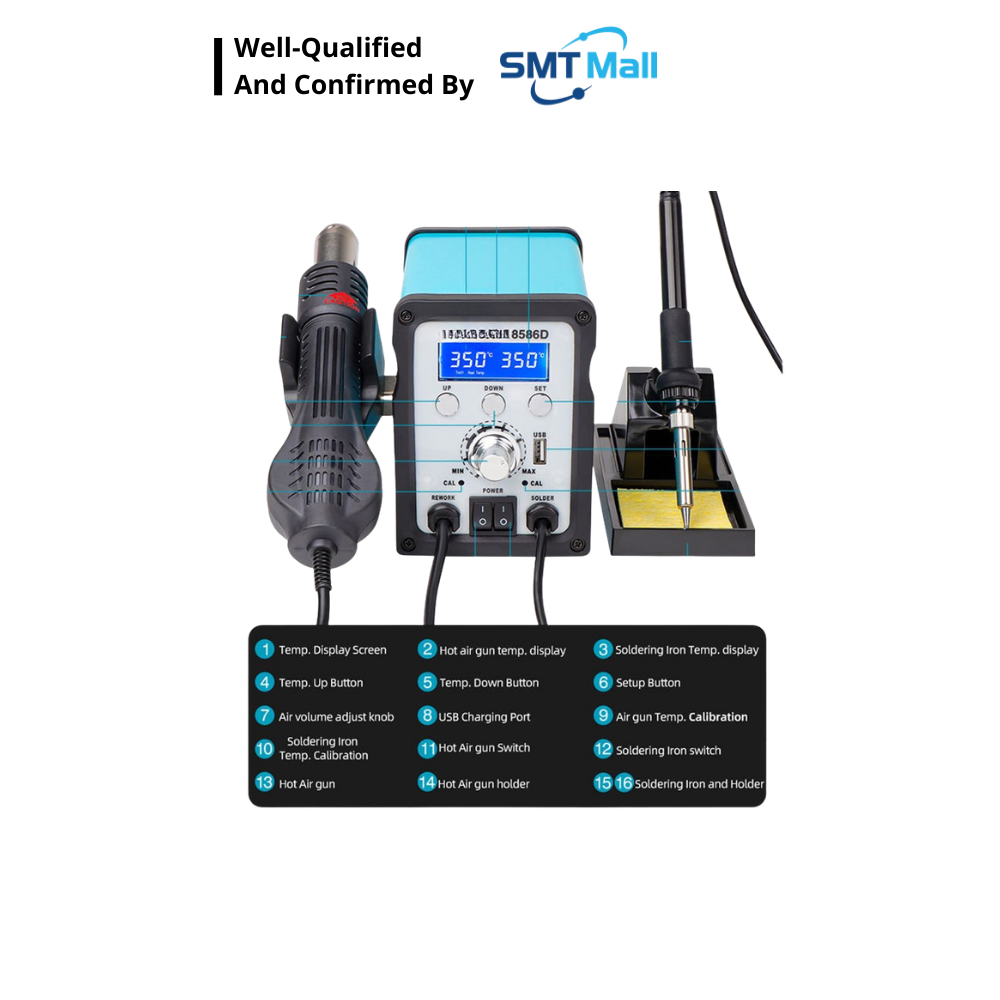

PRODUCT DESCRIPTION CHUERA 8586D 2-in-1

• Rotary knob temperature control for quick and convenient operation;

• Standard plug-in heating element for easy replacement and maintenance;

• Handle made from high-temperature-resistant materials for longer service life;

• Split-type design, easy placement, multiple soldering tips available, simple replacement;

• Lightweight handle design to reduce fatigue during long working sessions;

• Equipped with CAL temperature calibration port for manual temperature adjustment;

• Dual temperature display units: °C / °F, user-friendly operation.

⭐ TECHNICAL SPECIFICATIONS CHUERA 8586D 2-in-1

• Operating voltage: AC 220V / 50Hz

• Operating temperature range: 100 – 500°C

• No-load standby power consumption: ≤ 5W

• Maximum instantaneous power: 60W

• Temperature stability (no-load): ±2°C

• Tip-to-ground resistance: < 2 Ω

• Tip-to-ground voltage: < 2 mV

• Temperature calibration method: Potentiometer adjustment

• Overall dimensions: L170 × W120 × H93 mm

• Net weight: 1.73 kg

• Package dimensions: 270 × 205 × 118 mm

• Outer carton size: 555 × 425 × 375 mm

• Packing specification: 12 units / carton
