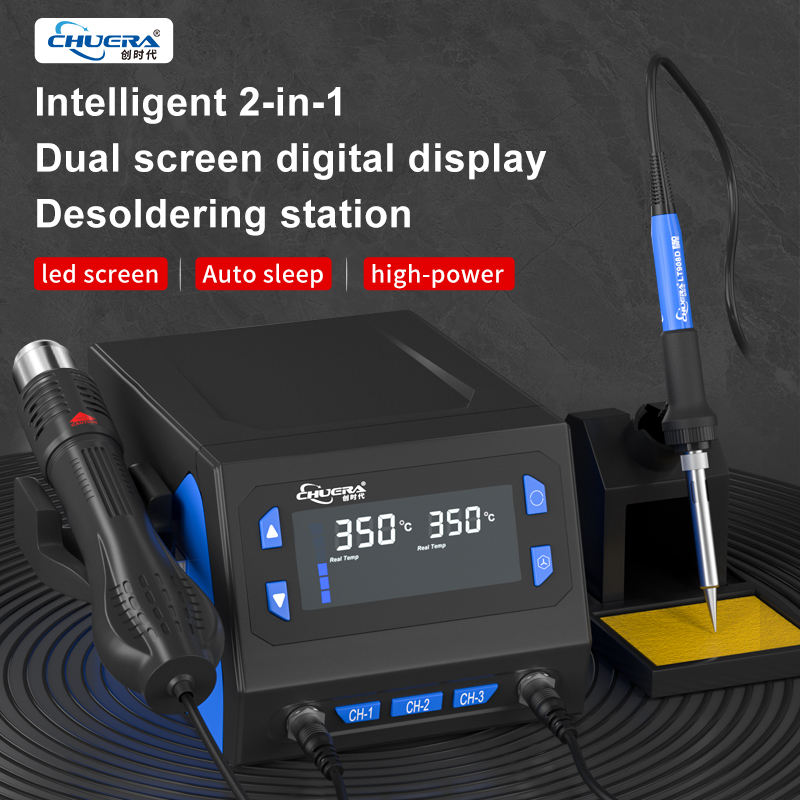

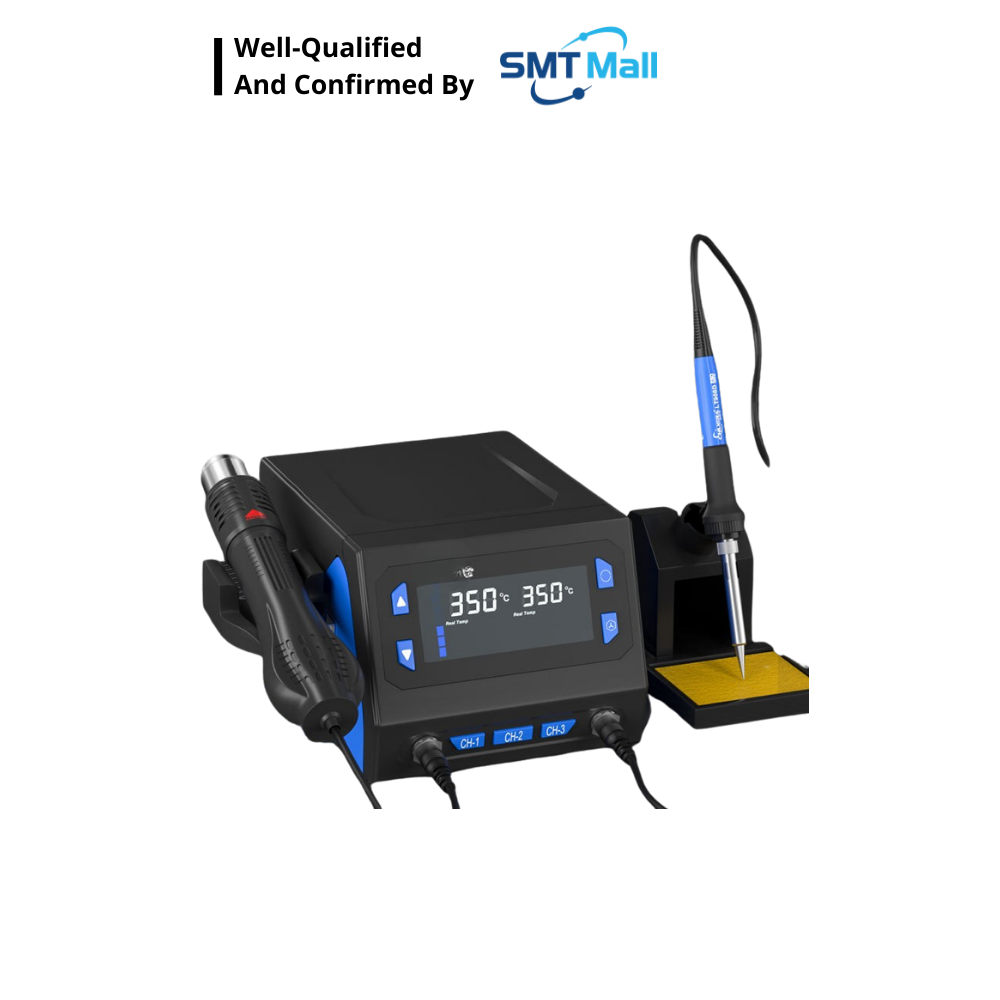

💡 Key Features CHUERA 866D+

• ✅ Total power output up to 770W for fast and efficient circuit processing

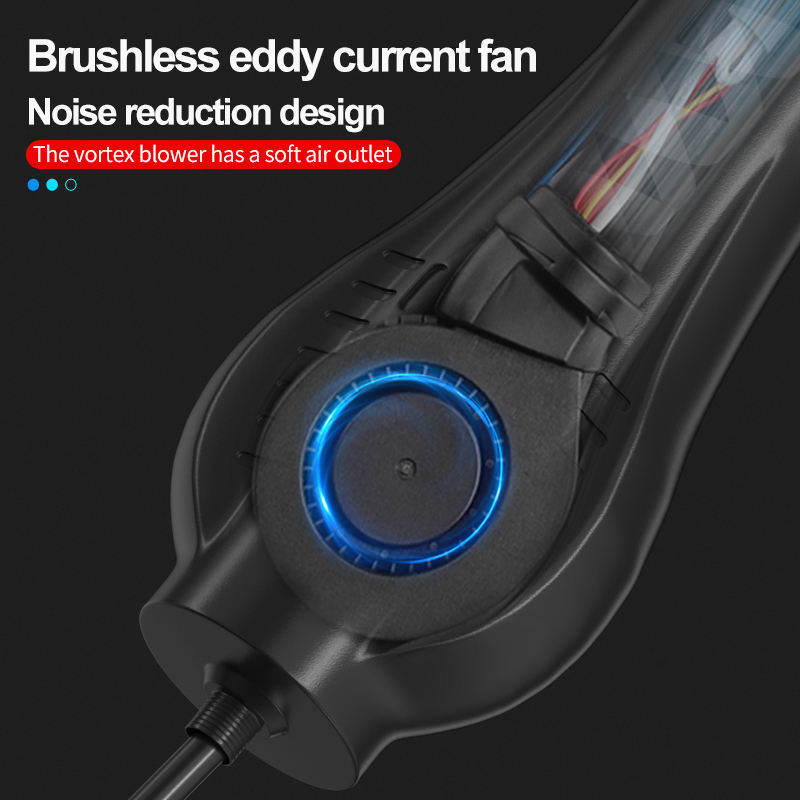

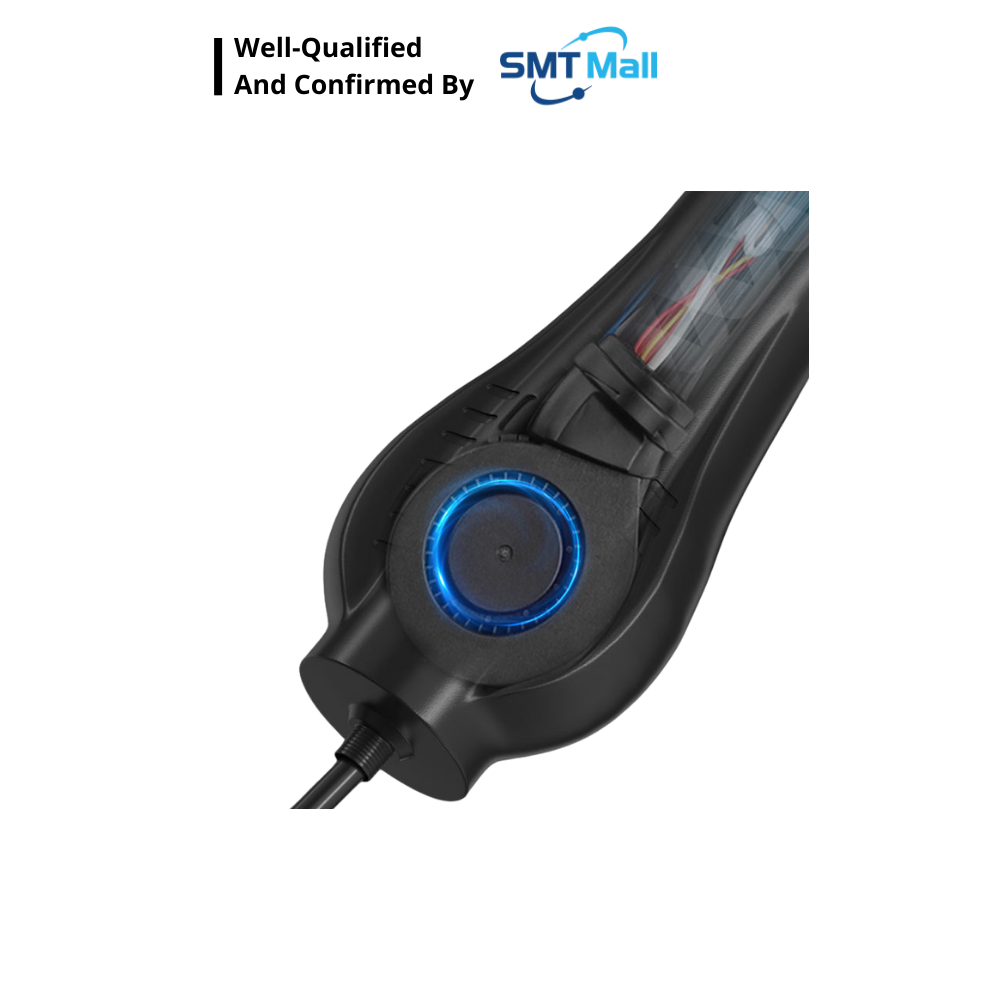

• ✅ Hot air system: 700W, airflow up to 120 L/min, temperature up to 500°C

• ✅ Soldering iron: 70W, temperature range 100–450°C, stability ±2°C

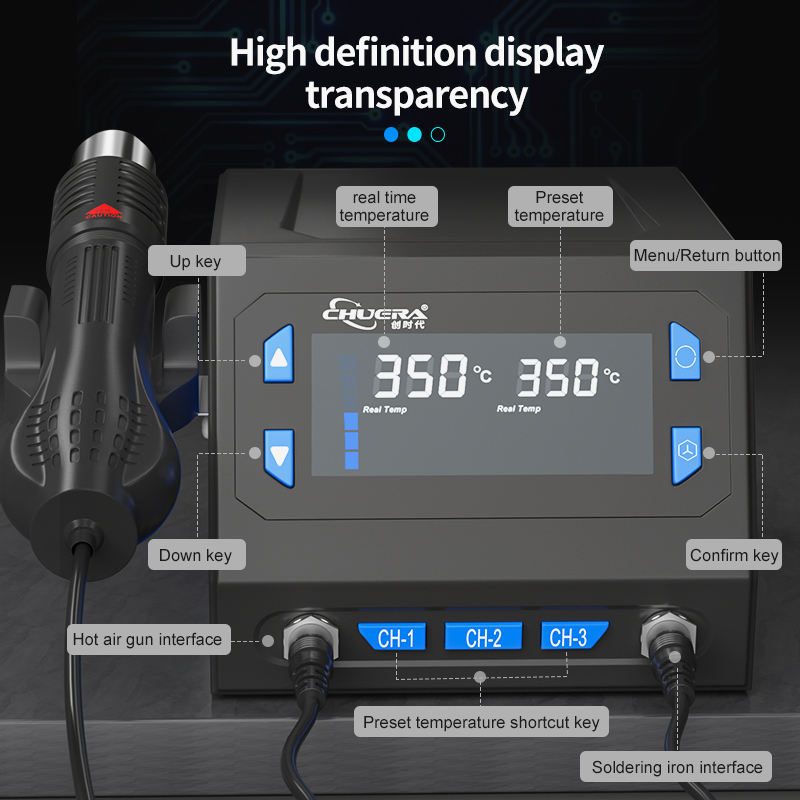

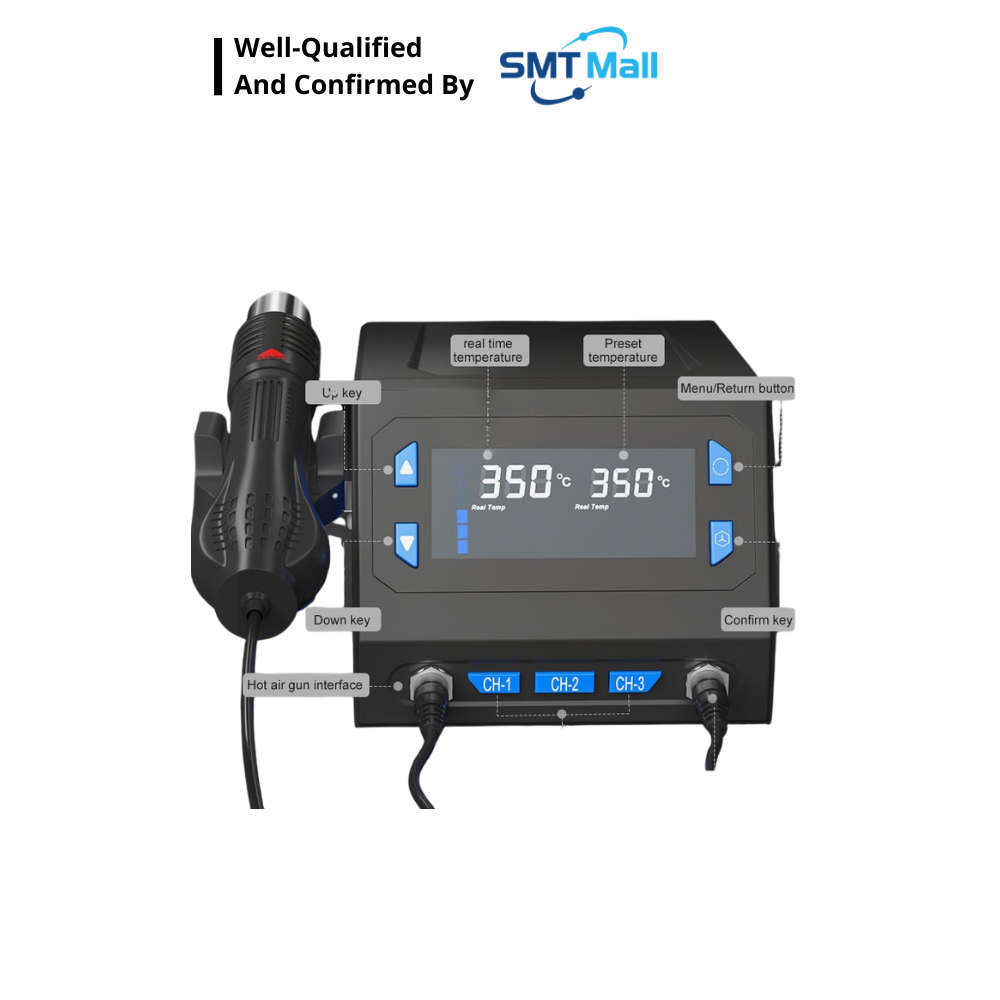

• ✅ Dual LED displays showing hot air and soldering temperatures independently in real time

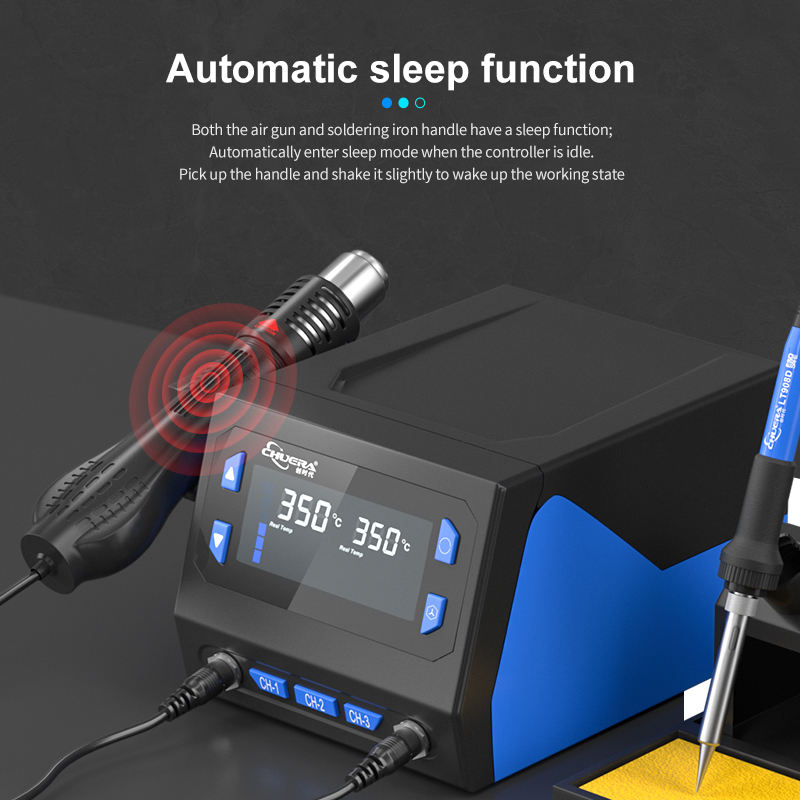

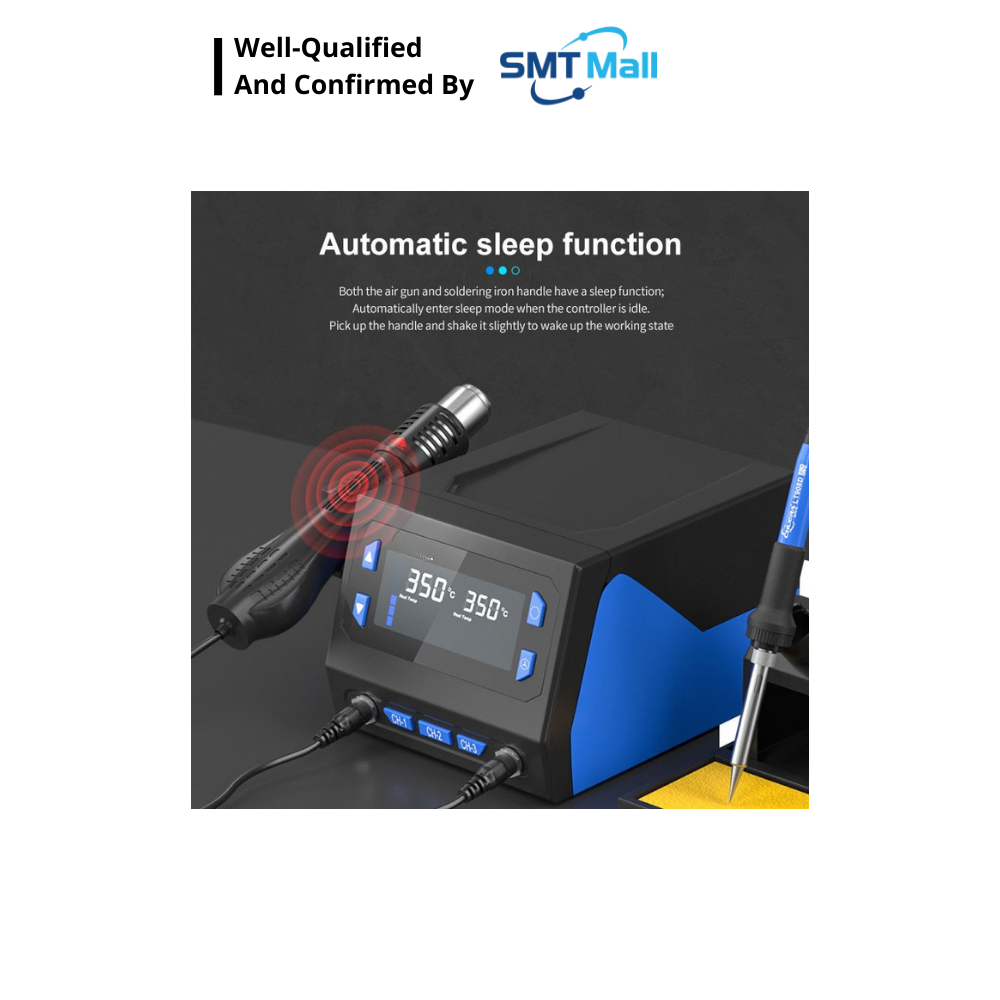

• ✅ Selectable °C / °F, with intelligent sleep mode and fault alarm function

• ✅ 3 preset temperature channels for quick switching, ideal for professional technicians

• ✅ Compact and space-saving design, perfect for limited workbenches

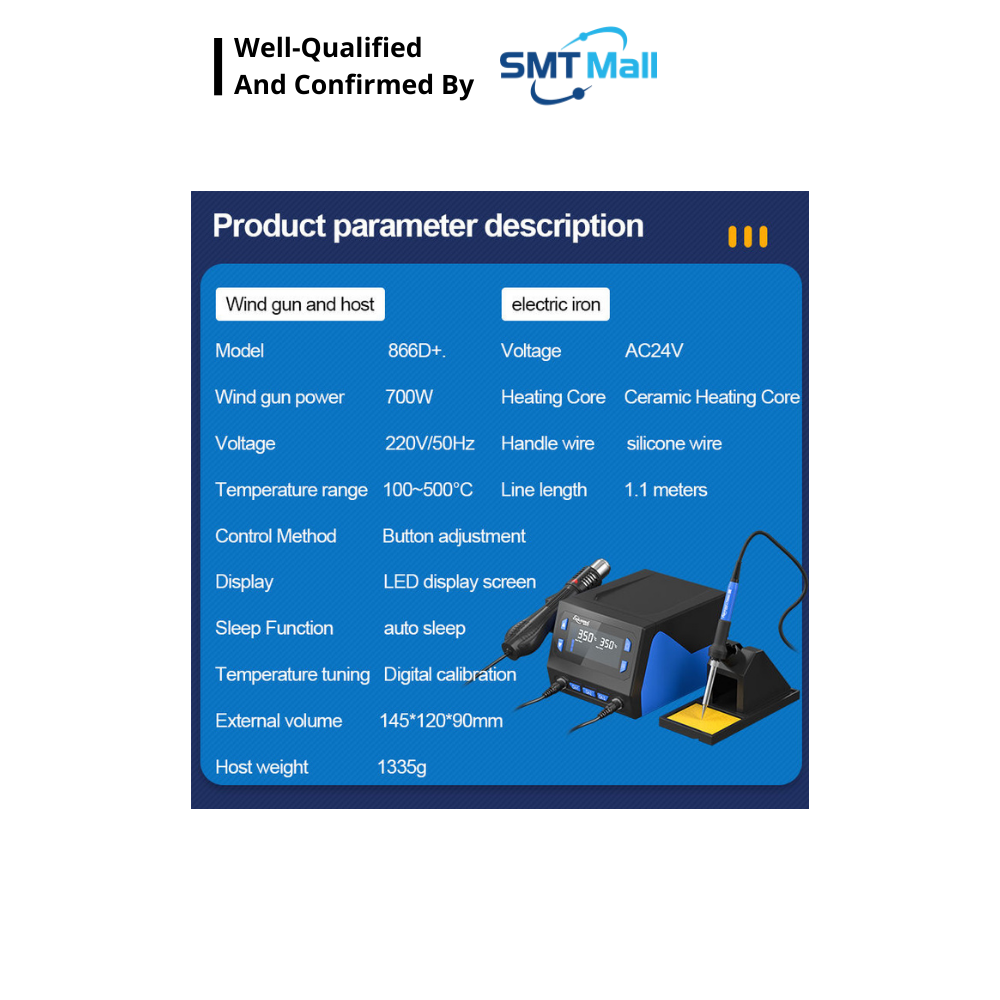

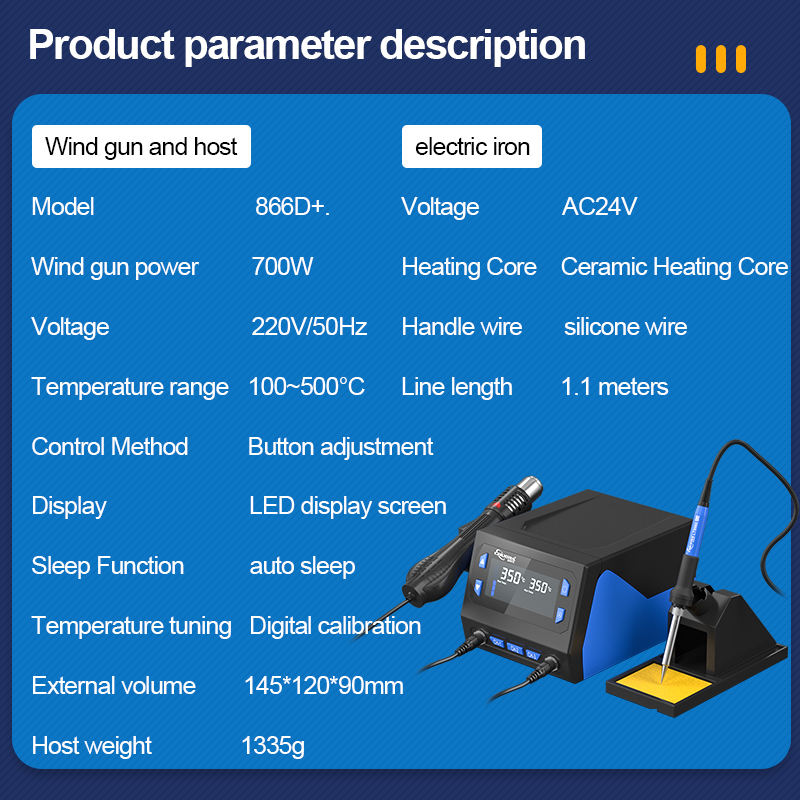

📦 Technical Specifications:

🧯 Hot Air Rework Specifications:

• Power: 700W

• Temperature range: 100°C – 500°C

• Airflow: Up to 120 L/min

• Calibration: Digital

🔧 Soldering Iron Specifications:

• Power: 70W

• Temperature range: 100°C – 450°C

• Tip-to-ground resistance: < 2 Ω

• Leakage voltage: < 2 mV

• Calibration: Digital

📐 General Specifications:

• Unit dimensions: 153 × 121 × 98 mm

• Operating voltage: AC 220V / 50Hz

• Operating environment: 0 – 40°C, humidity < 80%

🎁 Optional Accessories:

• LT866D+ hot air handle, LT866D+ soldering handle

• H866D+ heating element, C1321 quick-release soldering heater

• Hot air nozzles and 900-Series soldering tips

📍 Applications:

• Mobile phone, PCB, IC, capacitor, and chip repair

• Suitable for technicians, engineering students, and DIY users

• Ideal for labs, repair workshops, and electronics service centers
