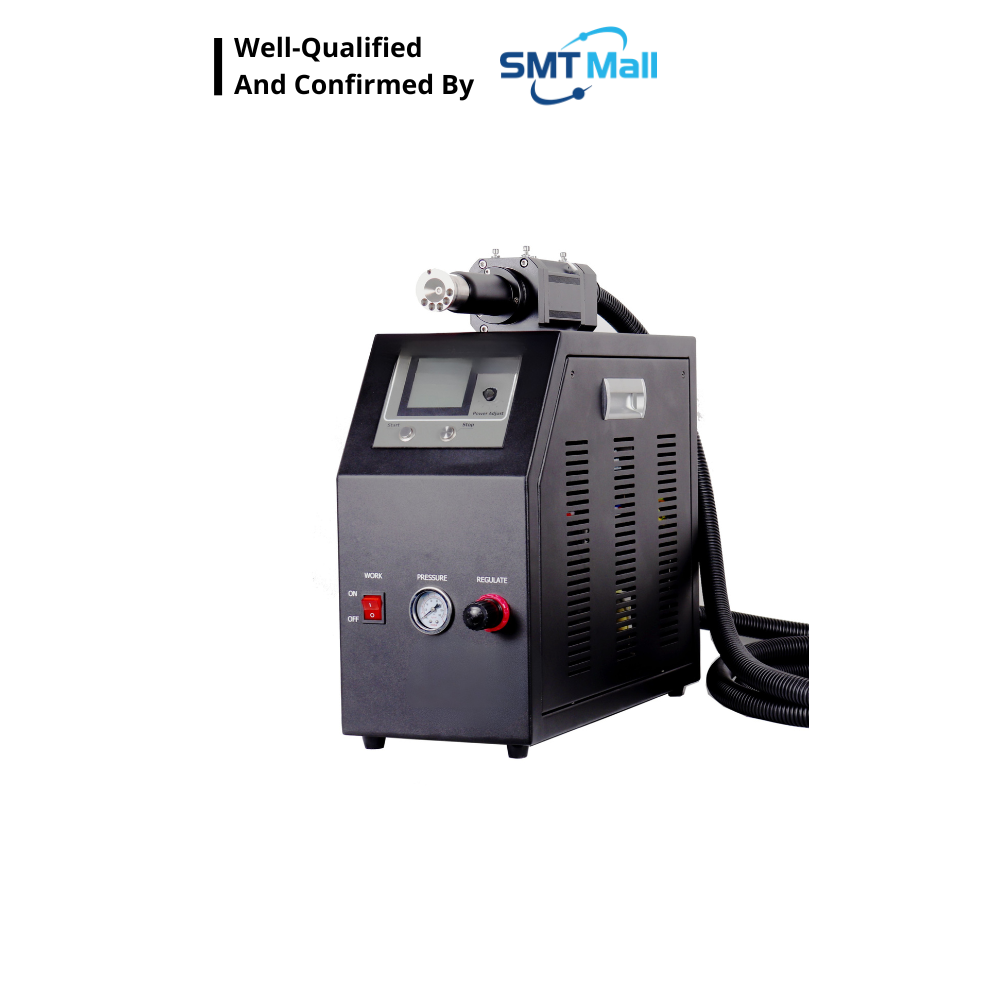

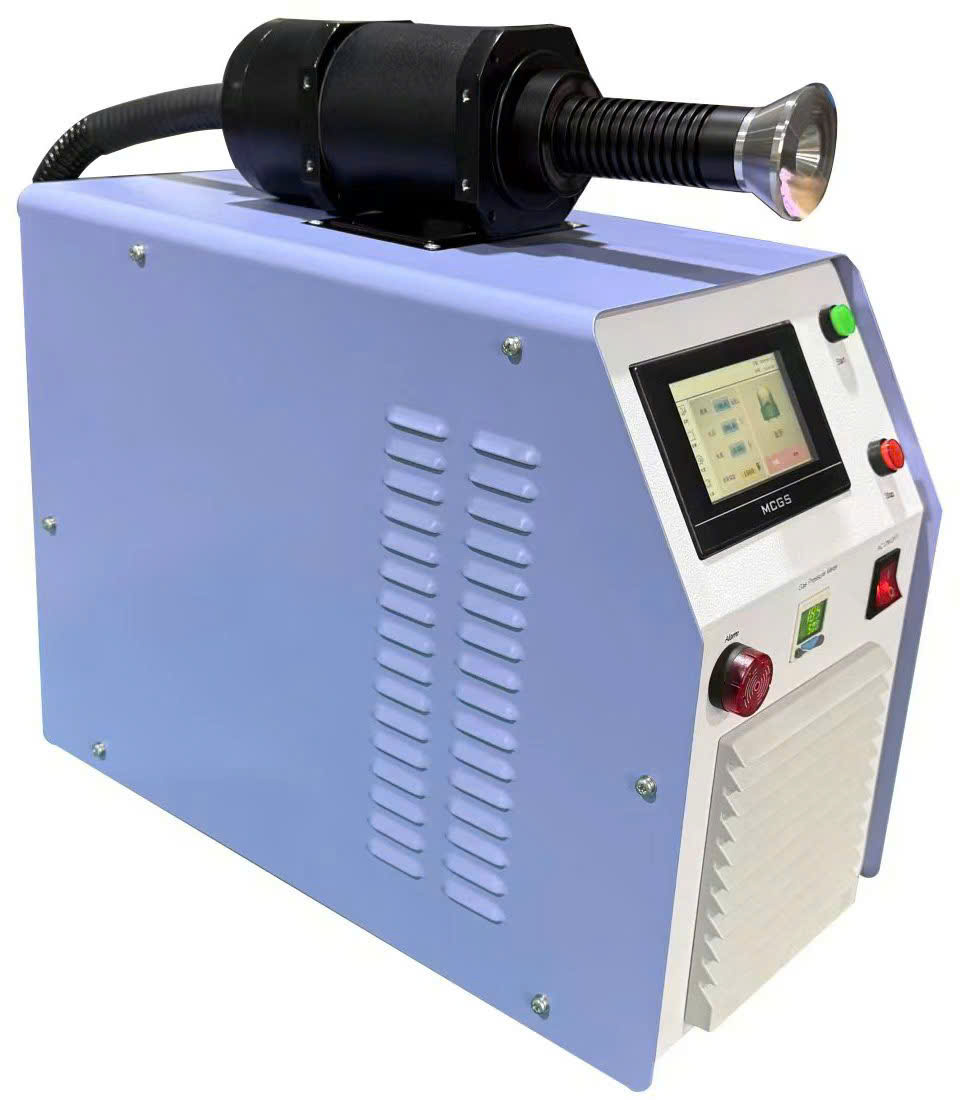

Plasma Surface Treatment Machine AP100
$ 5,000.00
United States dollar ($) - USD
EXW Factory
Final quotation is subject to final confirmation and specifications.
Product overview
The AP-100 Plasma Cleaning System utilizes a high-frequency, high-voltage transformer to generate amplified current and voltage.
During operation, an arc discharge occurs between the electrode and the grounding discharge head. This process ionizes the surrounding air (or special gas), creating a plasma state composed of mixed ions and electrons.

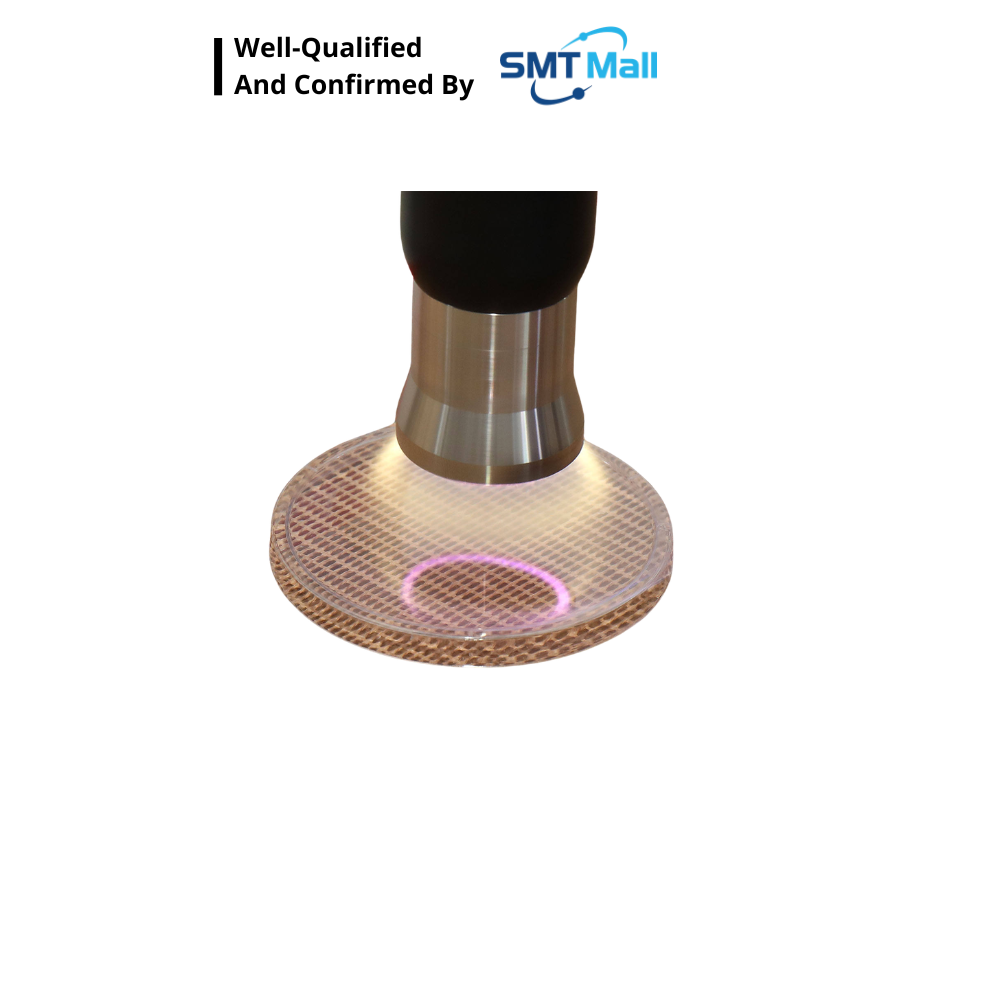

Through a compressed air injection, the plasma is expelled from the nozzle, forming a high-energy plasma jet capable of efficiently treating and modifying various material surfaces.
Technical specifications
| Item | Specification |
|---|---|
| Equipment Size | 576 mm (L) × 232 mm (W) × 373 mm (H) |
| Weight | 20 kg |
| Input Power Supply | AC 220V, 50/60Hz |
| Rated Power | 500 W |
| High Voltage Frequency | 40 kHz |
| Working Gas | Anhydrous, oil-free compressed air (optional nitrogen or other gases) |
| Protection Functions | Overload protection, short-circuit protection, open-circuit protection, temperature protection |
| Control Options | Local control & remote control available |

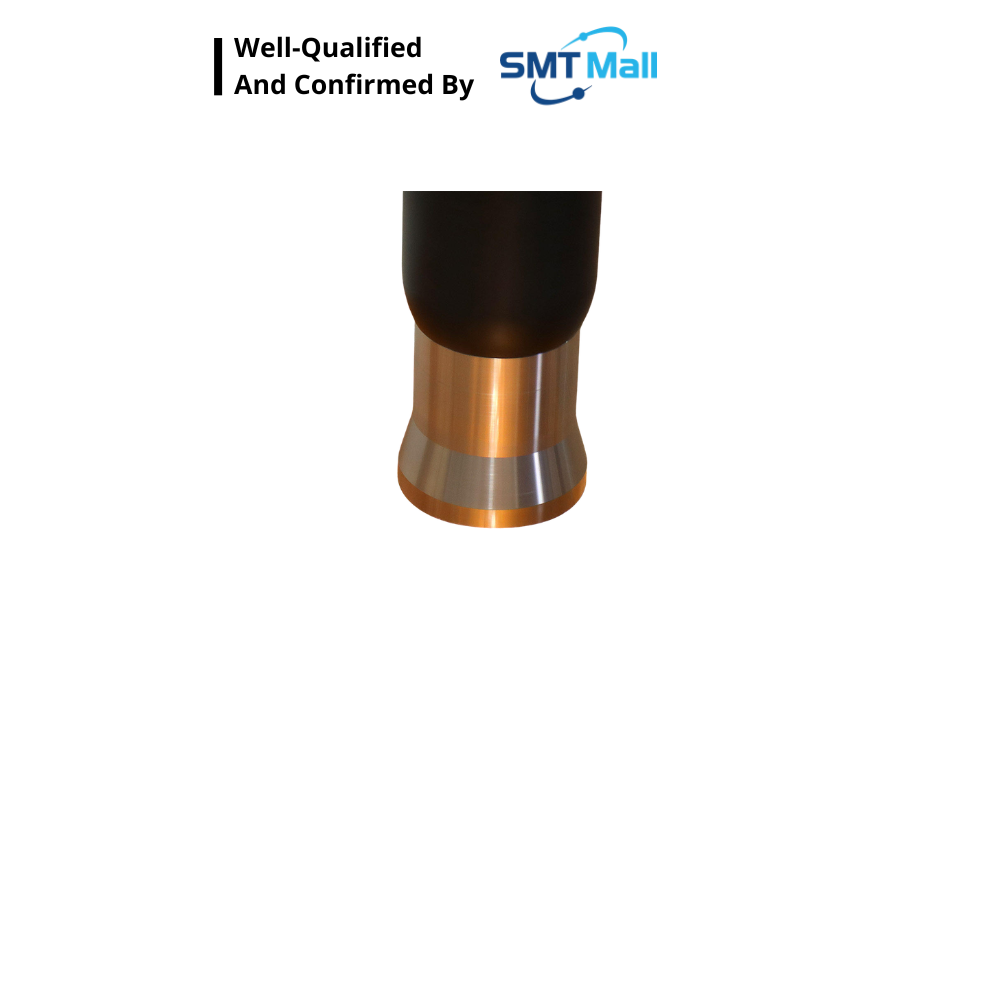

| Spray Gun Types | Rotary spray gun / Direct injection spray gun |
| Rotary Gun Options | Treatment width & diameter: Ø80 mm, Ø60 mm, Ø40 mm, Ø20 mm (optional) |
| Direct Injection Options | Treatment width & diameter: 2 mm, 3 mm, 5 mm |
| Cable Length | 3 m (customizable) |
| Warranty & Service | Standard manufacturer warranty; extended service available upon request |
| Support | Detailed instruction manual and engineering support provided |
product manuals
AP 100_CTL
Applications
The AP-100 Plasma Cleaner is widely used for surface activation, cleaning, coating preparation, and bonding enhancement across multiple industries.
Industrial Applications Include:
(a) Electronics & Semiconductor
- PCB surface cleaning and activation before coating or adhesive application.
- LCD display coating and screen printing preparation.
- Removal of oils, dust, and glue residues from casings and connectors.
(b) Automotive
- Pre-bonding treatment for headlamp housings, brake pads, and sealing strips.
- Surface activation before painting or adhesive sealing.
(c) Medical Devices
- Pre-treatment of needles, plastic catheters, and tubing before bonding or coating.
(d) Machinery & Metal Processing
- Fine cleaning of metal parts before plating or sealing.
- Non-destructive surface activation for precision components.
(e) Packaging & Printing
Plasma pre-treatment on cartons, films, and packaging materials to improve adhesion and ink bonding.
