F12 SMT Reflow Soldering Oven Carefully Selected Materials

Carefully Selected Materials — Component Quality Highlights

Component / Material	Quality Details
Aluminum Alloy Nozzle Plate	Latest-design aluminum alloy nozzle plate with porous structure for uniform hot air distribution. Superior insulation performance eliminates the ‘shadow effect’, ensuring even heat transfer to all components across the full PCB width.
Plug-In Imported High-Temp Motors	Each heating zone is driven by an imported high-temperature motor with a plug-in modular design — allowing full replacement in under 5 minutes without tools. Ensures long service life, low noise, and shockless operation.
Siemens PLC Module Circuit	Siemens-brand PLC with modular circuit design for high stability and repeatability. If the IPC fails, the PLC continues offline without stopping production, protecting every board in the oven.
Hardened Rail Track	Rail tracks are processed with an industrial hardening treatment for enhanced dimensional stability and wear resistance — extending rail service life under continuous high-temperature production conditions.
High-Density Insulation Material	New energy-saving furnace construction with high-density thermal insulation on all 4 sides. Dramatically reduces heat loss, shortens warm-up time to ~20 minutes, and cuts normal running power to ~12 kW.
Special Stainless Steel Mesh Belt	Heavy-duty stainless steel mesh belt with tensioning device ensures smooth, shake-free, non-deforming PCB transport. Durable and wear-resistant, rated for continuous high-temperature operation over long service intervals.
Aluminum Alloy Conveyor Structure	Synchronous guide transmission mechanism made from aluminum alloy provides precise, stable rail width adjustment and seamless inline connection with upstream/downstream SMT equipment.
Large-Current Imported SSR	Hot air heating output uses imported large-current Solid State Relays (SSR) with dedicated radiators, ensuring safe, contact-free switching, improved cooling efficiency, and extended SSR service life versus standard relays.

Key Features

Key Feature	Description
12 Heating Zones, 24 Elements	UP 12 / BOTTOM 12 independent heating elements with 4-side return air circulation for best-in-class temperature uniformity. Each zone has independent temperature control and switch for precision thermal profiling.
New Energy-Saving Furnace Design	4-sided return air design combined with premium insulation materials minimizes thermal loss, reduces warm-up time to ~20 minutes, and keeps normal running power as low as ~12 kW during continuous production.
Siemens PLC + Professional IPC	Dual-control: Siemens PLC + IPC on Windows 7 with English/Chinese bilingual interface. PLC offline fallback protects production if IPC has issues. Supports 80 GB data storage and full profile printout.
Automatic Cylinder Body Lifting	The furnace body lifts automatically via cylinder, ensuring safe and convenient access to the internal heating chamber for cleaning, inspection, and maintenance.
Axial Fan Forced Dual Cooling	Independent axial fan forced-air cooling zones (up and bottom dual cooling) provide rapid, uniform heat extraction from PCBs after reflow — preventing component damage and board warpage.
UPS + Auto Delay Shutdown	Built-in UPS and automatic delay shutdown system protect PCBs and the machine in power failure or overheat events. Temperature and transmission speed out-of-tolerance alarms provide real-time process protection.
Screw Width Adjustment	Super-positioning flexible and convenient screw width adjustment system enables quick, precise rail width changes to accommodate different PCB sizes — minimizing changeover time on the line.
Nitrogen Option Available	Optional nitrogen atmosphere module for oxide-free, low-void soldering — suitable for high-reliability applications requiring inert atmosphere reflow of BGA, QFN, and other sensitive packages.

Technical Specifications

Specification	Details

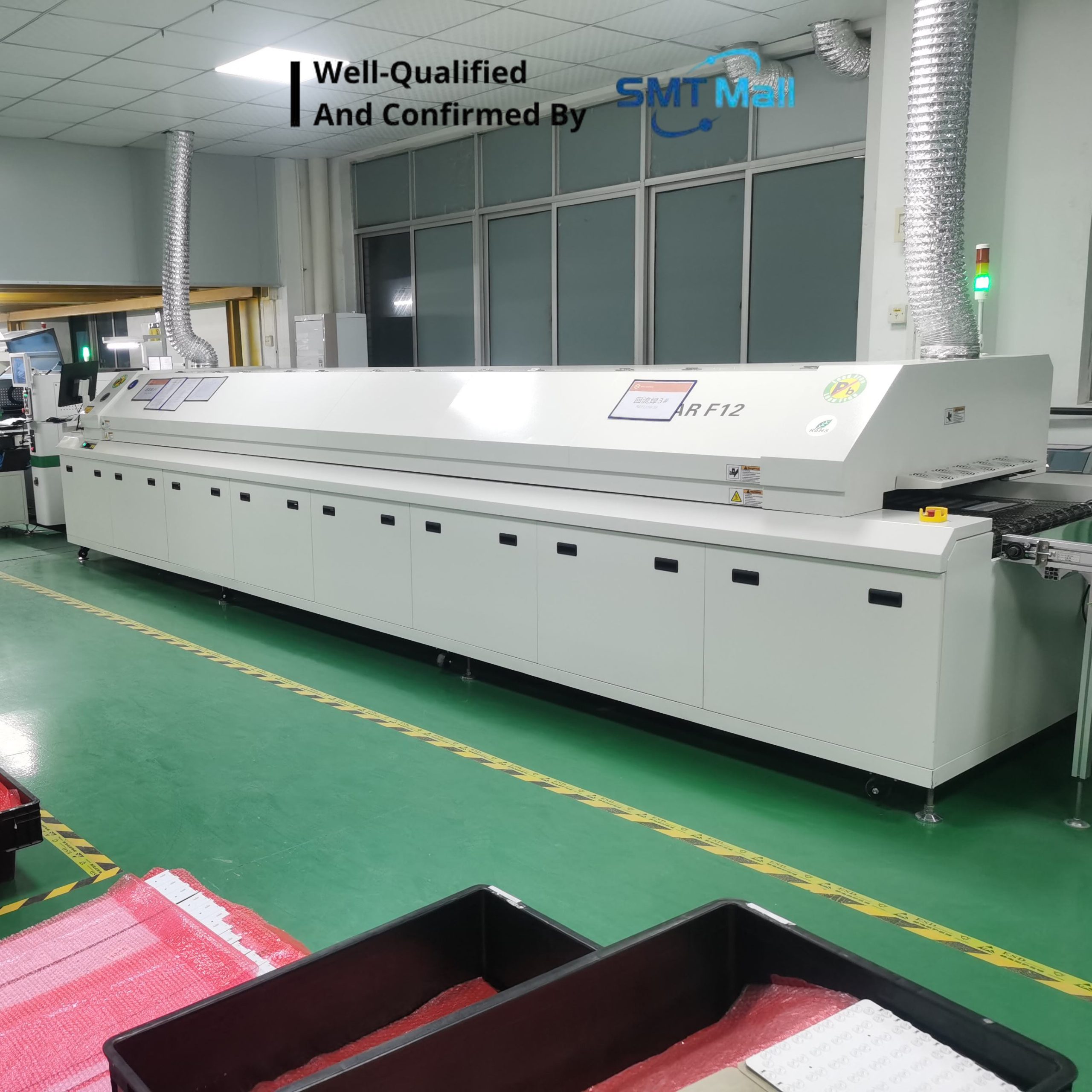

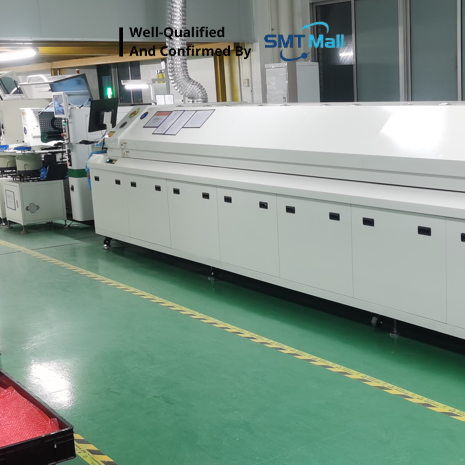

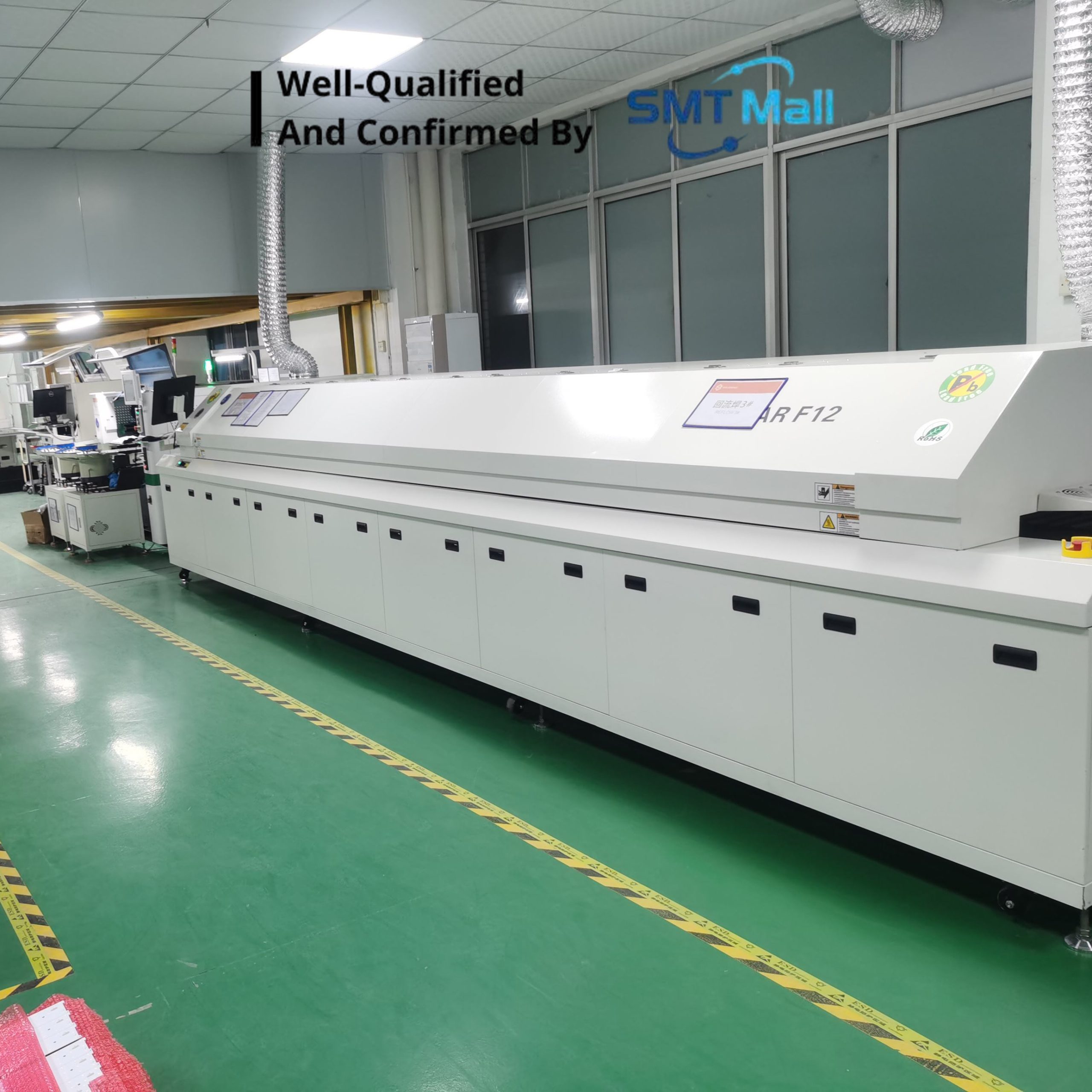

Model	JAGUAR F12
Machine Type	Large-Size SMT Lead-Free Hot Air Reflow Soldering Oven
Condition	New
Warranty	12 Months
Heating Zones	UP 12 / BOTTOM 12 (24 elements total)
Heating Zone Length	4,640 mm
Heating Mode	Hot Air — 4-Side Return Air Full Convection
Nozzle Plate Material	Aluminum Alloy (latest design, best insulation performance)
Cooling Zones	UP 2 / BOTTOM 2 (axial fan forced air)
Max. PCB Width	400 mm
Mesh Belt Width	450 mm
Rail Width Range	50 – 400 mm (screw adjustment)
Conveyor Speed	0 – 2,000 mm/min (stepless, ±2 mm/min accuracy)
Conveyor Direction	Left to Right (Right to Left optional)
Conveyor Height	900 ± 20 mm
Transmission Type	Stainless steel mesh belt and hardened chain
Component Clearance	Top and bottom 25 mm
Power Supply	5-line, 3-phase 380V 50/60 Hz
Total Power	56 kW
Starting Power	48 kW
Normal Power Consumption	~12 kW (during production)
Warm-up Time	~20 minutes to working temperature
Temp. Setting Range	Room temperature to 300°C
Temp. Control Method	PID closed-loop control + SSR (imported large-current)
Temp. Control Precision	±1°C
Temp. Deviation on PCB	±2°C
Control System	Siemens PLC + Professional IPC (offline fallback)
OS / Interface	Windows 7; Chinese & English bilingual
Data Storage	Process data and status storage (80 GB)
Alarm System	Temp. out-of-tolerance (high/low), board-dropped alarm; Tower light: Yellow=Warning, Green=Normal, Red=Abnormal
Protection	IPC + UPS; auto delay shutdown on power failure or overheat
Machine Dimensions (L×W×H)	~6,600 × 1,420 × 1,580 mm
Machine Weight	~2,000 kg
Color	Computer Gray
Nitrogen Option	Available (optional)
Certification	CE, CCC, ISO 9000, RoHS
Place of Origin	Shenzhen, Guangdong, China

Applications

• High-volume SMT PCB assembly lines requiring premium material quality and long machine service life
• Lead-free soldering of BGA, QFN, LGA, fine-pitch, and 0201 surface-mount components
• Mixed-technology PCB assembly (SMT + THT) with complex, demanding thermal profiles
• Automotive electronics: ECUs, ADAS modules, LED lighting, and EV battery management PCBs
• Aerospace and defense high-reliability PCB assemblies
• Medical device PCBs requiring precise process control and full data traceability
• Industrial automation: control boards, servo drives, power electronics, and relay modules
• Telecommunications, 5G infrastructure, and networking equipment PCB production
• LED driver boards, display panels, and consumer electronics manufacturing

Industries Served

• Consumer electronics and smart device manufacturing
• Automotive electronics (ECUs, ADAS, EV systems, LED lighting)
• Aerospace & defense high-reliability PCB manufacturing
• Medical devices and life sciences electronics
• Industrial automation, power electronics, and control systems
• Telecommunications, networking, and 5G infrastructure
• LED lighting and display panel production
• Contract electronics manufacturing (EMS / PCBA services)
