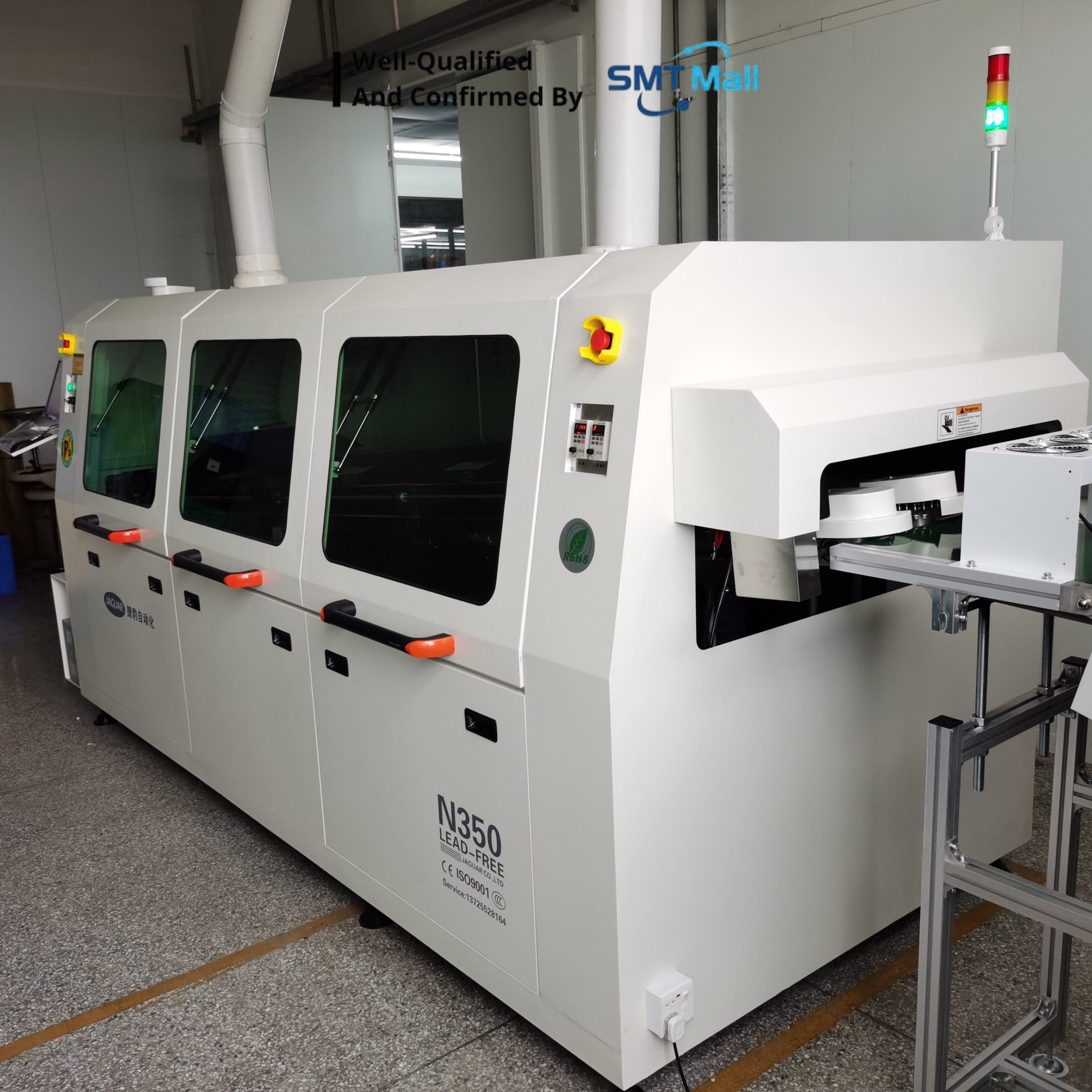

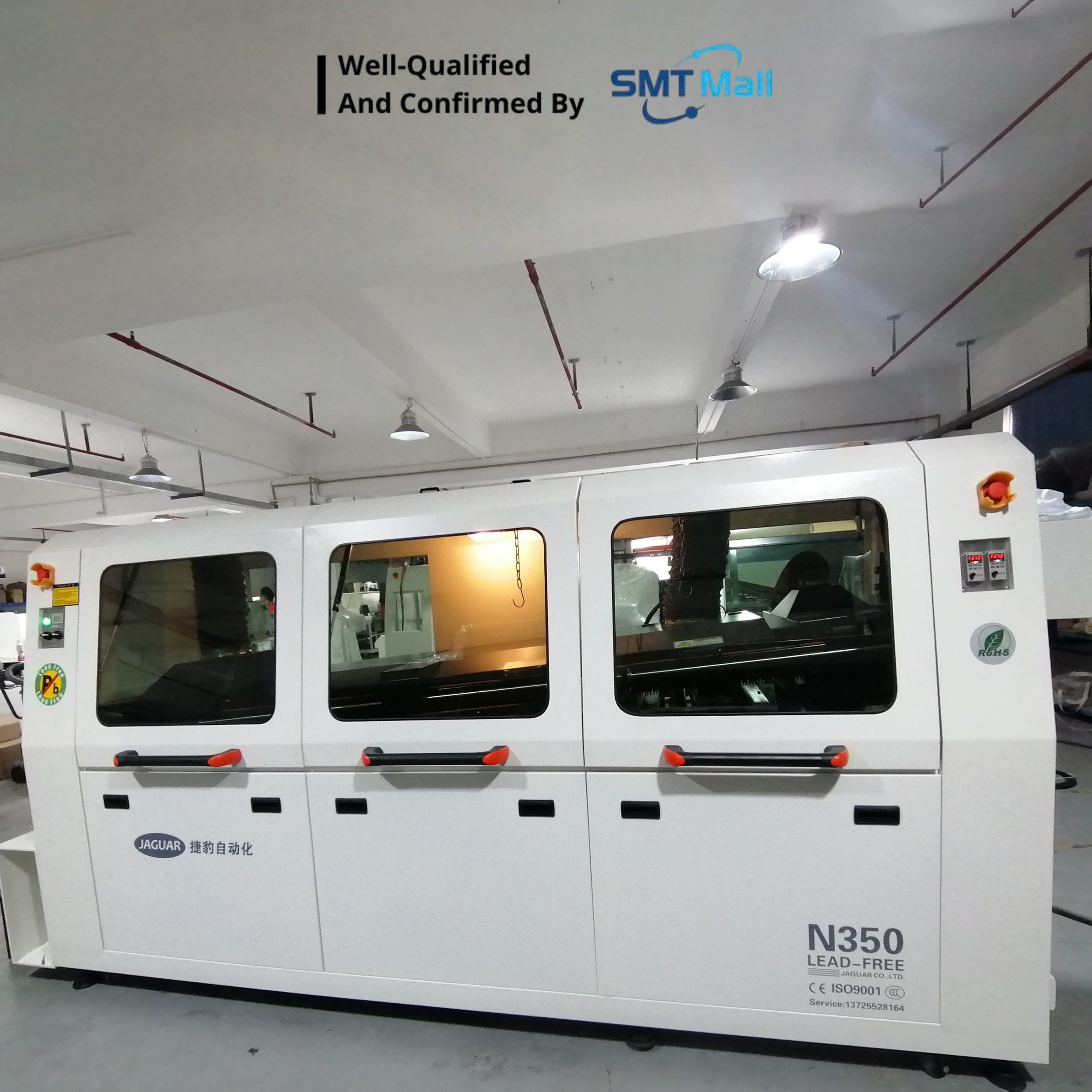

N350 Ti-Alloy Dual Wave Soldering Machine

Key Features

Key Features

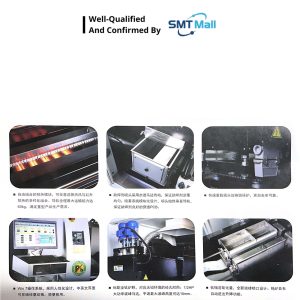

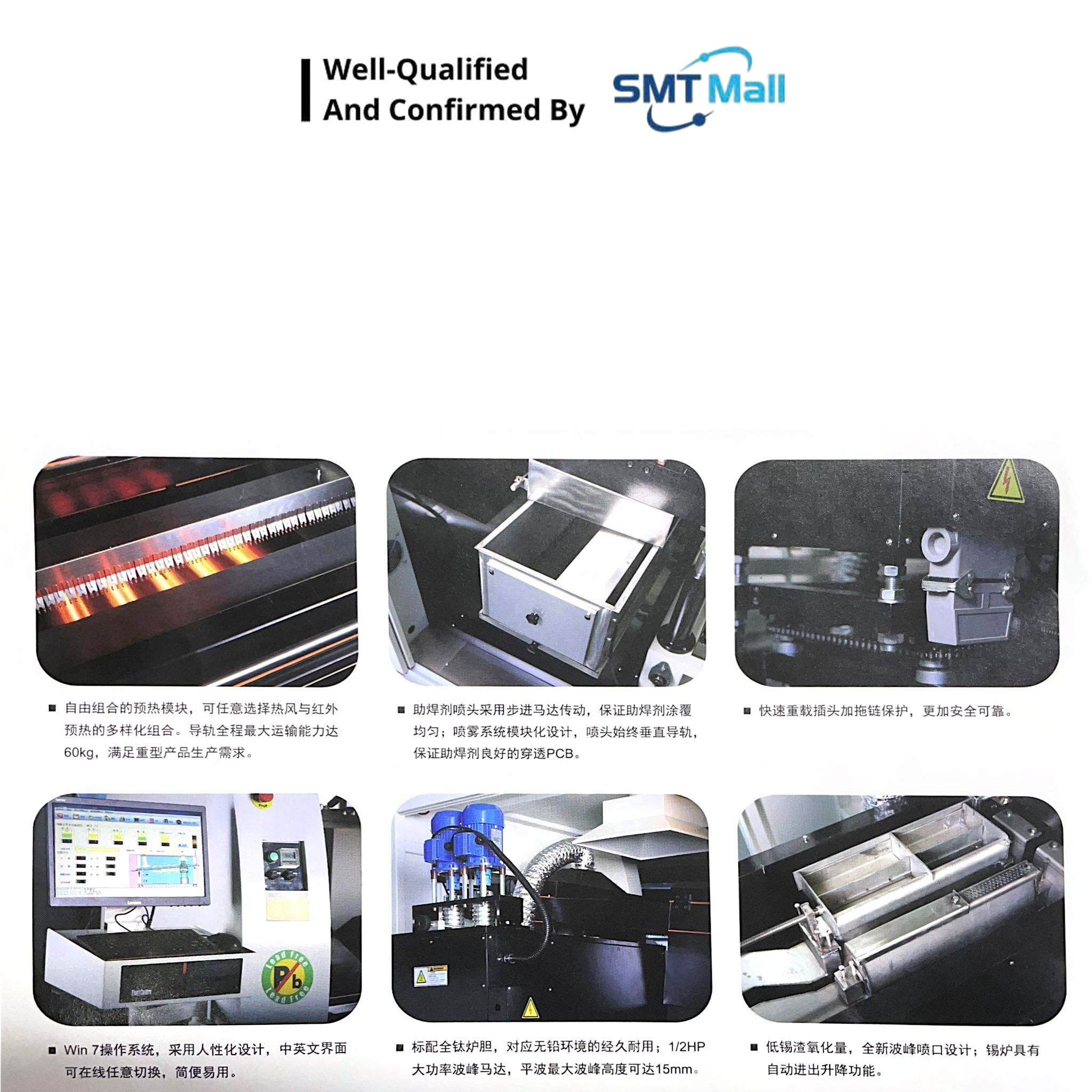

Ti-Alloy Solder Pot:	Titanium alloy construction eliminates tin adhesion and corrosion, dramatically extending pot lifespan compared to standard cast iron or SS pots.
Dual Wave Soldering:	Chip wave (turbulent) + smooth wave configuration ensures complete solder penetration on complex through-hole and mixed-technology boards.
3-Stage Hot Air Preheat:	Independent 3-zone preheating with total length of 1,600 mm; temperature uniformity within ±2°C for reliable flux activation and thermal stress reduction.
Stepper Motor Flux Spray:	Japanese scanning spray nozzle with rodless pneumatic cylinder and PLC control ensures even, precise flux application — reliable and consistent every cycle.

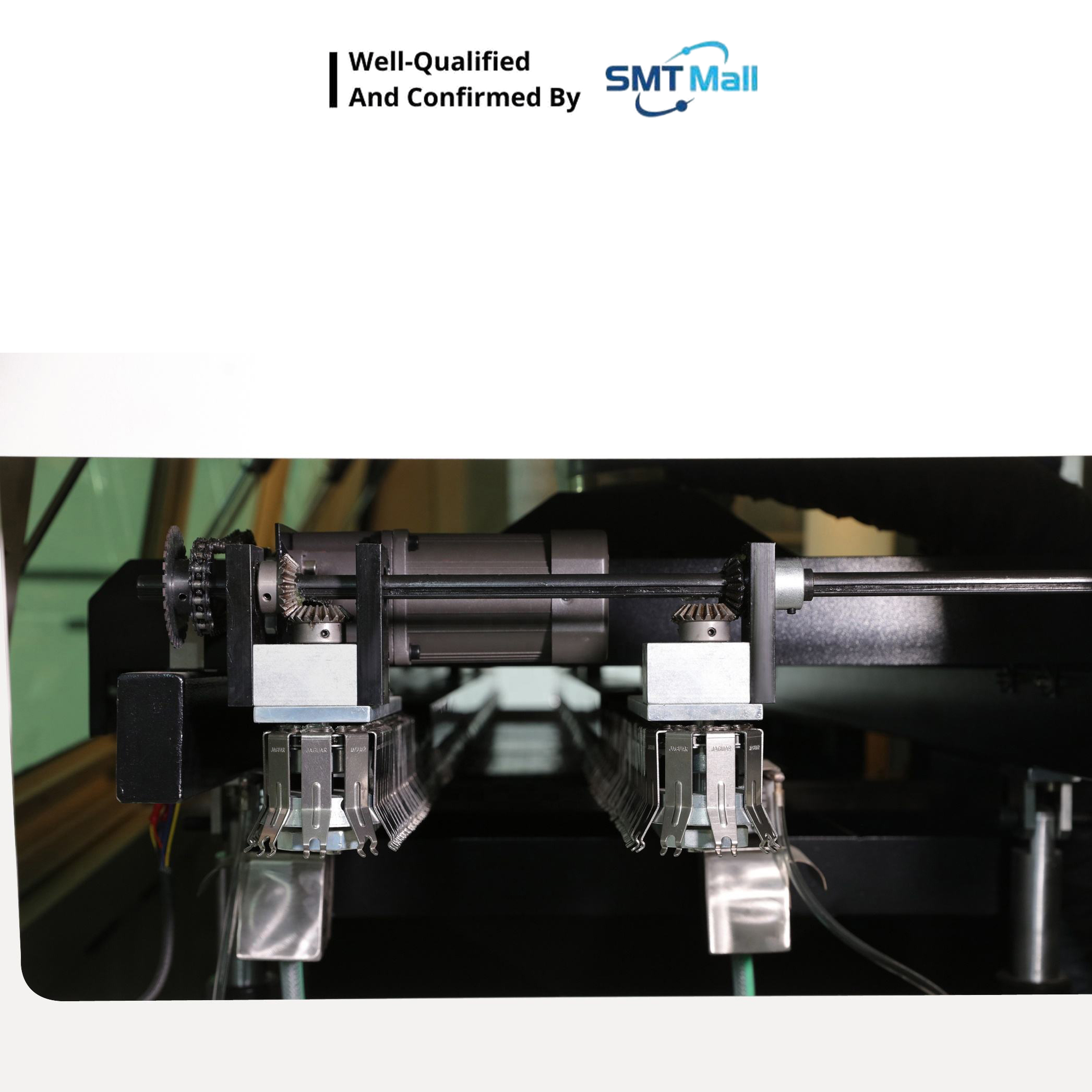

Ti-Alloy Conveyor Fingers:	Titanium alloy transport chain fingers with double V-groove, non-stick tin design; reinforced for long-term durability and clean solder quality.

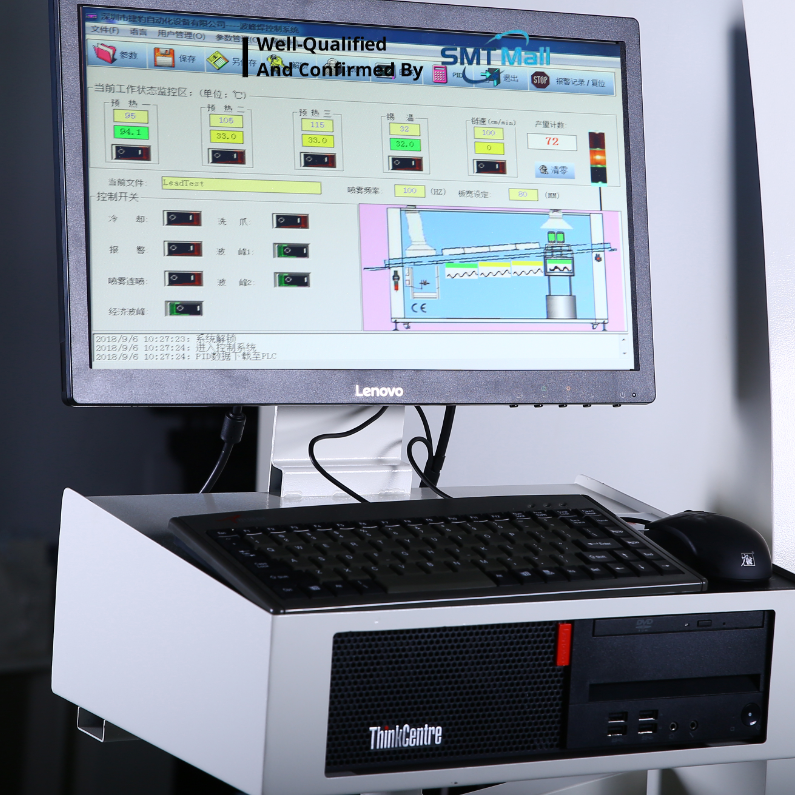

PC + PLC Control System:	Dual control architecture (PC + PLC or Touchscreen + PLC options) with Win7 OS, bilingual Chinese/English interface, and black-box SPC data logging.
Lead-Free & Pb Solder Ready:	Supports both lead-free (SAC alloys) and traditional Sn-Pb soldering processes; independent furnace design for easy cleaning and process changeover.
Nitrogen Option Available:	Optional nitrogen atmosphere module with high-accuracy oxygen analyzer; nitrogen consumption ~16 m³/hr at 1,000 ppm for oxide-free, high-quality joints.
Auto Claw Cleaning:	Automatic conveyor claw washing system maintains claw cleanliness to prevent solder bridging and contamination defects.
Energy-Efficient Design:	Running power as low as 7 kW during production; frequency converter drive and intelligent board detection minimize power consumption and flux waste.

Technical Specifications

Specification	Details
Model	JAGUAR N350
Machine Type	Dual Wave Soldering Machine (Chip Wave + Smooth Wave)
Input Voltage	380V AC / 50~60Hz (3-phase)
Total Power	≤ 20 kW
Running Power	~7 kW (during production)
Solder Power	380V / 12 kW
Preheat Power	220V / 8 kW
Preheat Zones	3 independent zones (hot air)
Preheat Length	1,600 mm total
Preheat Temp. Uniformity	±2°C
PCB Board Width	50 ~ 350 mm (adjustable)
Conveyor Speed	300 ~ 2,000 mm/min (adjustable)
Conveyor Direction	Left to Right (Right to Left optional)
Conveyor Angle	Adjustable (contact factory for range)
Solder Pot Material	Titanium Alloy
Solder Pot Capacity	~280 kg (330 kg variant available)
Solder Pot Temperature	Up to 400°C
Solder Type	Lead-Free (SAC) / Sn-Pb
Solder Temp. Control	PID + SSR dual independent outer-heating
Wave Crest Drive	220V / 1 kW imported high-frequency inverter motor
Flux System	Stepper motor scanning spray; Japanese nozzles + rodless pneumatic cylinder
Air Supply	0.5 MPa
Machine Dimensions (Body)	3,300 (L) × 1,420 (W) × 1,750 (H) mm
Machine Dimensions (Overall)	~4,100 (L) × 1,420 (W) × 1,750 (H) mm
Machine Weight	~1,300 kg
Control System	PC + PLC / Touchscreen + PLC (options available)
OS / Interface	Windows 7; Chinese & English bilingual
Solder Warm-up Time	~120 min to reach 250°C
Preheat Warm-up Time	~10–15 min to reach 150°C
Nitrogen Option	Available (O₂ analyzer; ~16 m³/hr at 1,000 ppm)
Certification	CE, ISO 9000, RoHS, CCC
Warranty	1 Year
Place of Origin	Shenzhen, Guangdong, China
* Specifications may vary. Please contact Jaguar or your authorized distributor for the latest confirmed datasheet.
