5-Axis Automatic Soldering Machine 5331R
$ 3,500.00
United States dollar ($) - USD
EXW Factory
Final quotation is subject to final confirmation and specifications.
Key Features and Technologies
- Easy programming: coordinates of soldering points can be entered directly, or taught using the teaching pendant to guide the movement to the correct point.
- Multi-axis robotic arm driven by precision stepper motors and advanced control algorithms improves the accuracy and repeatability of the soldering tip.
- Supports both point and drag soldering, with all parameters user-configurable to suit complex tasks and micro-soldering processes.
- Optional single or dual Y-axis: higher productivity and faster speed, enabling unattended operation (load at the front, unload at the back).
- Uses imported WELLER temperature control system for low-temperature soldering to protect components.
- Stable WELLER system ensures consistent soldering tip temperature without fluctuations caused by heat loss to components or PCB, ensuring consistent quality in automation.
- Fast heating and cooling: reaches 300°C from room temperature in 10 seconds; returns to set temperature within 1 second with ±5°C error.
- High-durability soldering tips with multi-layer coating for high-temperature oxidation resistance.
- Hundreds of soldering tip models available; custom designs available based on customer needs.
- ±0.02mm repeatability ensures precise soldering during production.

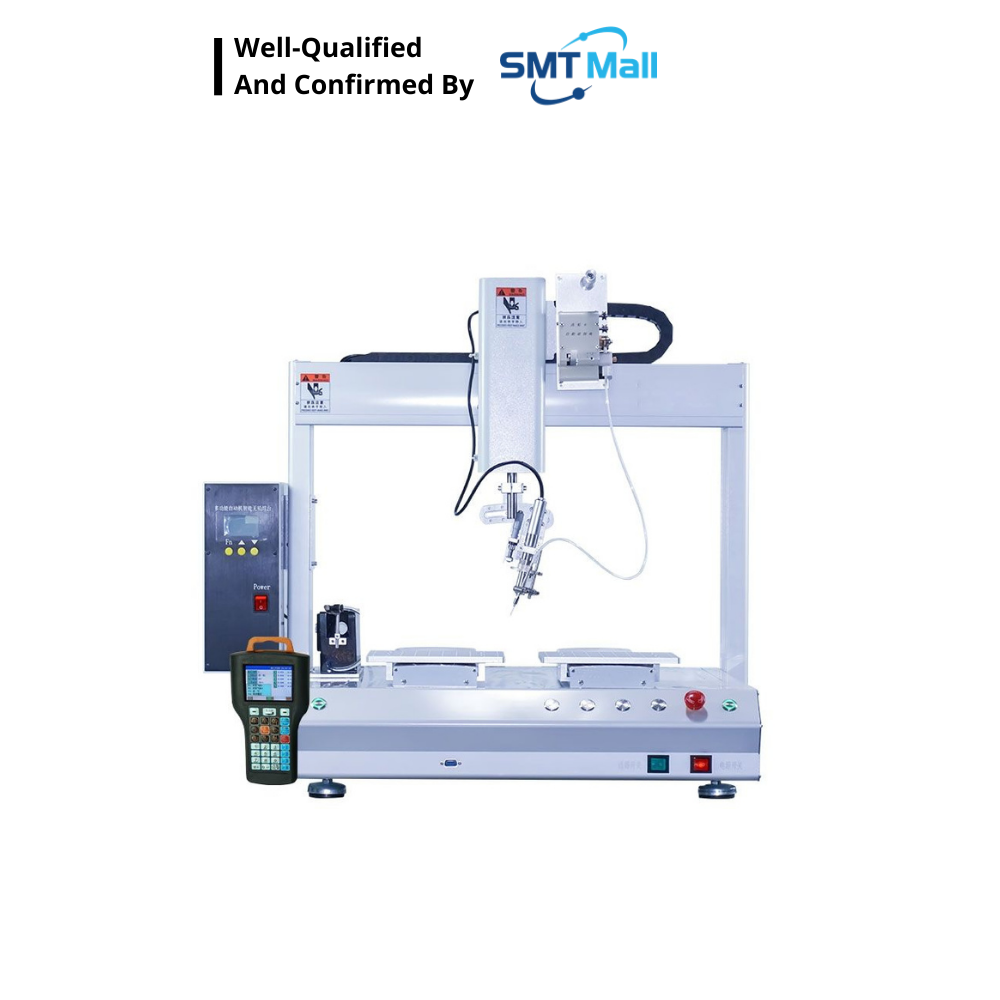

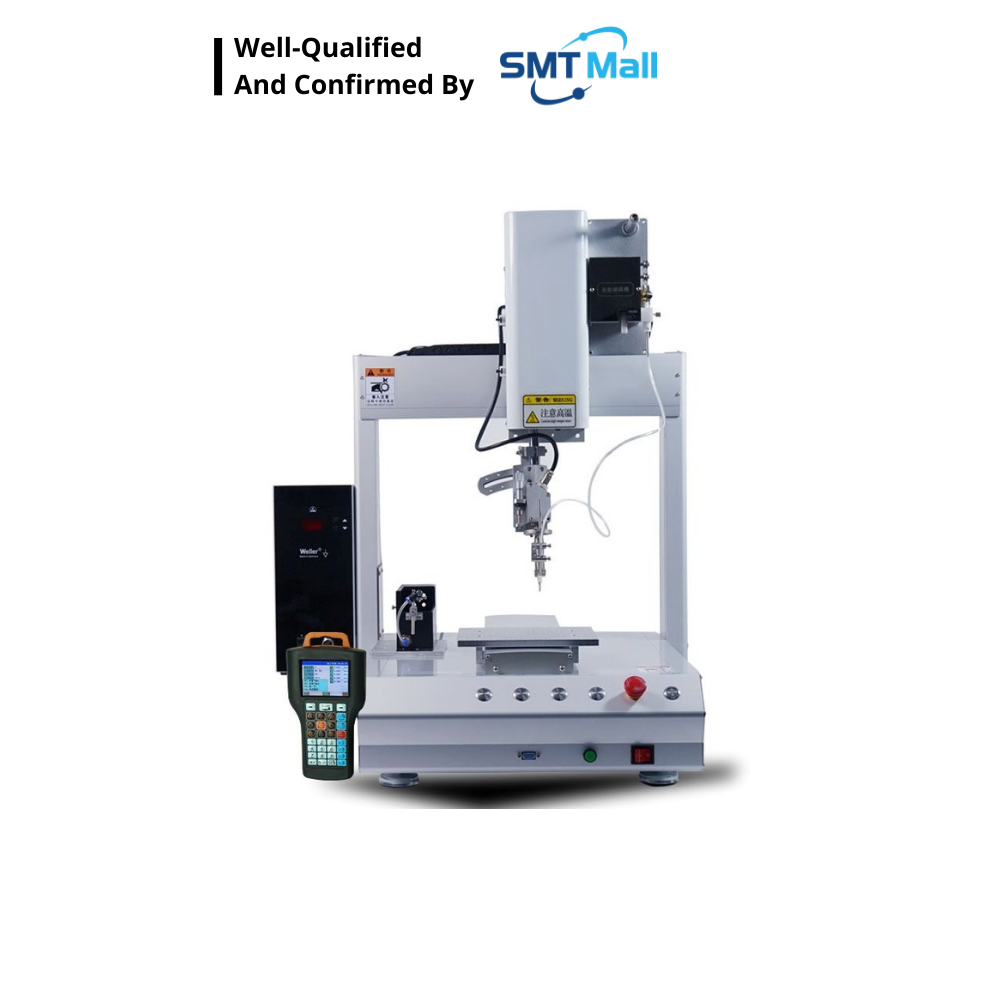

Product overview 5-Axis Automatic Soldering Machine 5331R
The 5-axis automatic soldering machine is an advanced solution for precision electronics manufacturing. Built on a 4-axis robot with a 360° rotating R-axis, it offers a wider soldering range and enables blind soldering that reflow or wave soldering cannot achieve. Ideal for mixed circuit boards, heat-sensitive parts, and SMT back-end processes, it’s widely used for PCB wire, charger plug, connector, DC terminal, and LED strip soldering. This high-precision 5-axis soldering robot ensures efficiency, reliability, and consistent soldering quality across complex applications.
Technical specifications
| Item | Specification |
| Model | JIT-SD5331R |
| Heating Core | WELLER |
| Temperature Range | 0–500°C |
| Temperature Accuracy | ±2°C |
| Travel Range (X/Y/Z/R) | 500 × 300 × 300 × 100 mm / 360° |
| Maximum Load | 15 kg |
| Movement Speed | 0–500 mm/sec |
| Resolution | 0.01 mm / axis |
| Repeatability | 0.02 mm / axis |
| Program Storage | 100 groups |
| Motor System | Lishan Motor |
| Guide Rail | HIWIN (Taiwan) |
| Belt | ELATECH synchronous belt (Italy) |
| Photoelectric Sensor | Omron (Japan) |
| Interpolation Function | 3-axis |
| Input Power Supply | Full voltage AC110V ~ 220V |
Applications
- Automotive Electronics: Soldering sensors, connectors, and ECUs with high accuracy, which is crucial for reliability in harsh conditions.
- Consumer Electronics: Soldering small components like ICs and LEDs on printed circuit boards (PCBs) to maintain consistent quality.
- Medical Devices: Precisely soldering delicate parts like sensors, where avoiding damage to sensitive components is critical.
- Renewable Energy: Assembling solar panels by soldering busbars and junction boxes.
- Cables and Connectors: Soldering various types of plugs, cables, and connectors, including video, audio, RF, and USB cables, as well as RJ/network transformers.
- General PCB Assembly: Soldering a wide range of plug-in electronic components such as resistors and capacitors, and other small circuit board assemblies.
