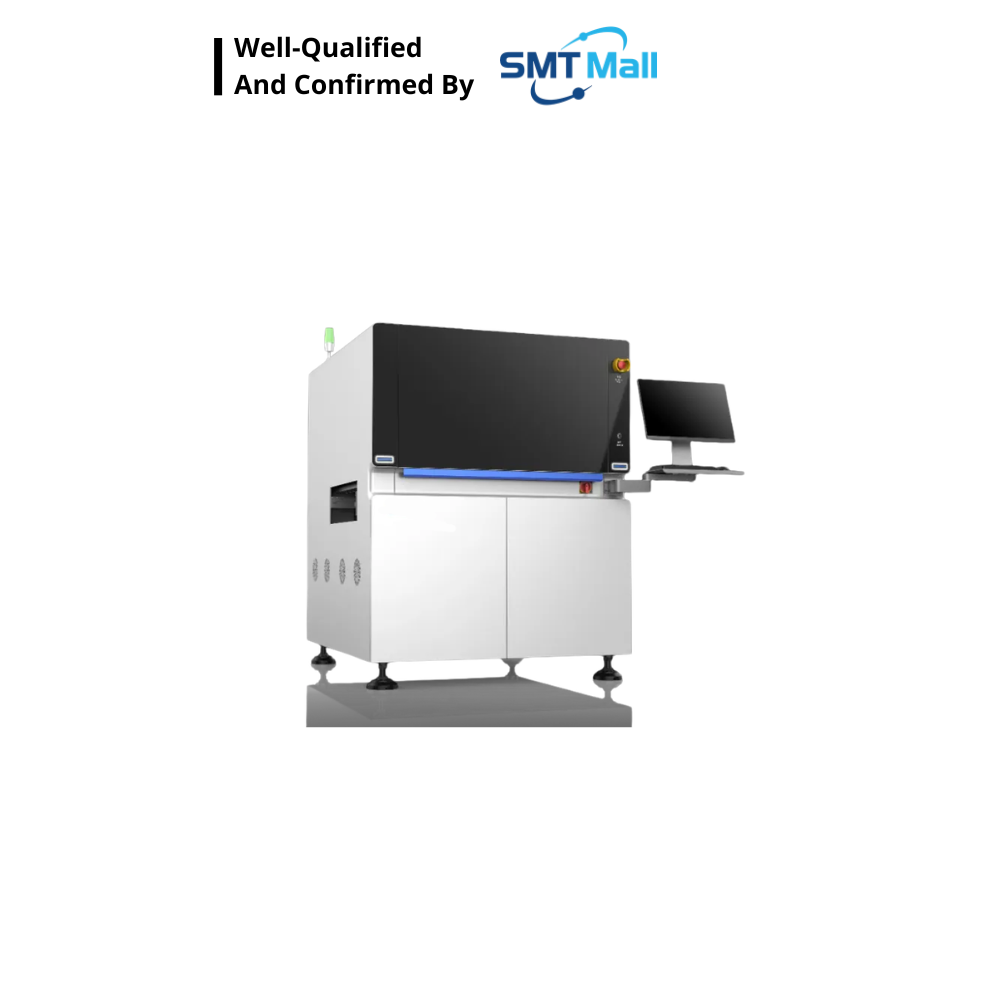

1. Product overview

          The Automated Conformal Coating Inspection and Measurement System delivers rapid, high-accuracy inspection of PCB coating defects and precise coating thickness measurement. Leveraging a 12M high-resolution camera and a multi-light system (UV, White, Red), this advanced platform streamlines the detection of coating issues such as no-coating, insufficient coating, bubbles, voids, smears, and delamination. With robust 3D measurement technology using Optical Coherence Tomography (OCT), manufacturers achieve significant improvements in process quality, yield, and reliability. This system is engineered for seamless integration with Smart Factory Industry 4.0, offering real-time process control and data-driven analysis.

3. Technical specifications


   Specification	Detail
   VISION SYSTEM
   Camera	12M High Resolution Camera
   Pixel Resolution	30 μm
   Lighting	Multi Lighting System (UV, White, Red)
   Inspection Speed	150 cm²/sec
   PCB RANGE
   PCB Size	50 x 50 – 490 x 480 (mm)
   PCB Thickness	0.5–5T
   Max PCB Warpage	±1.0 mm

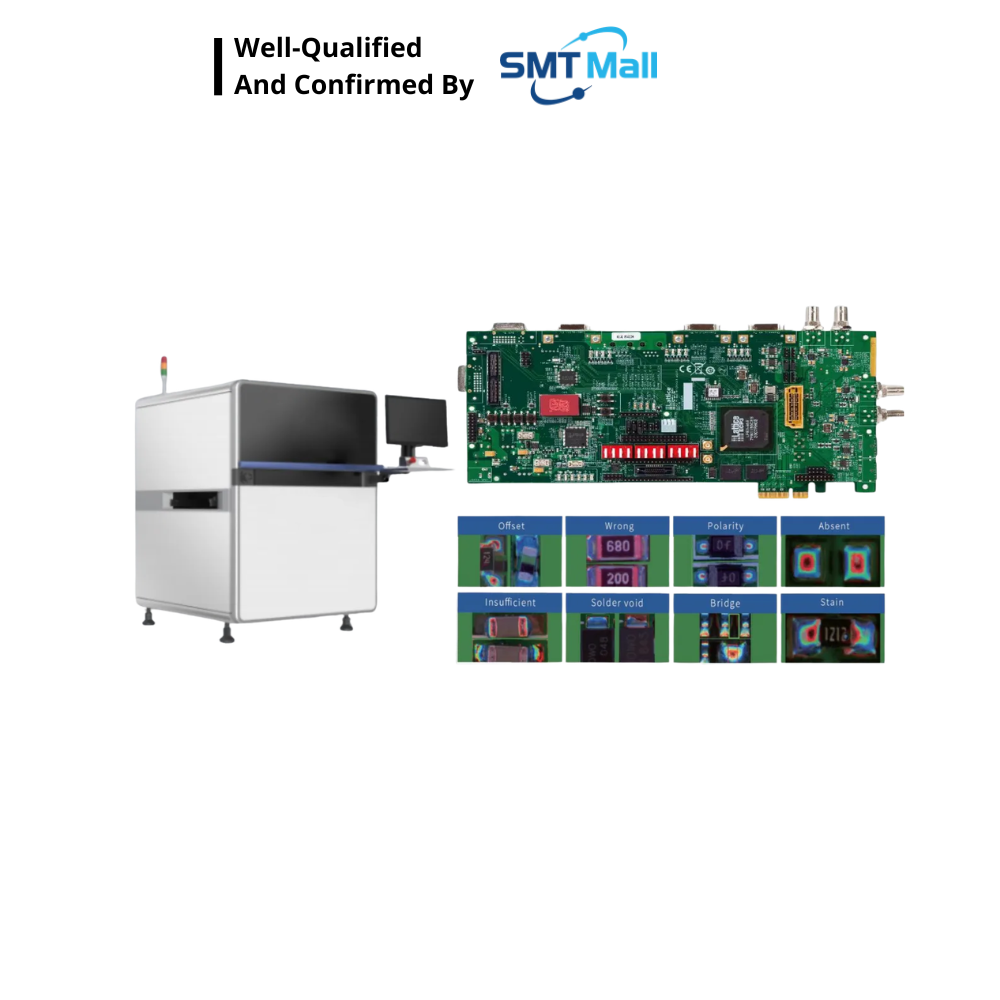

   INSPECTION FUNCTIONS

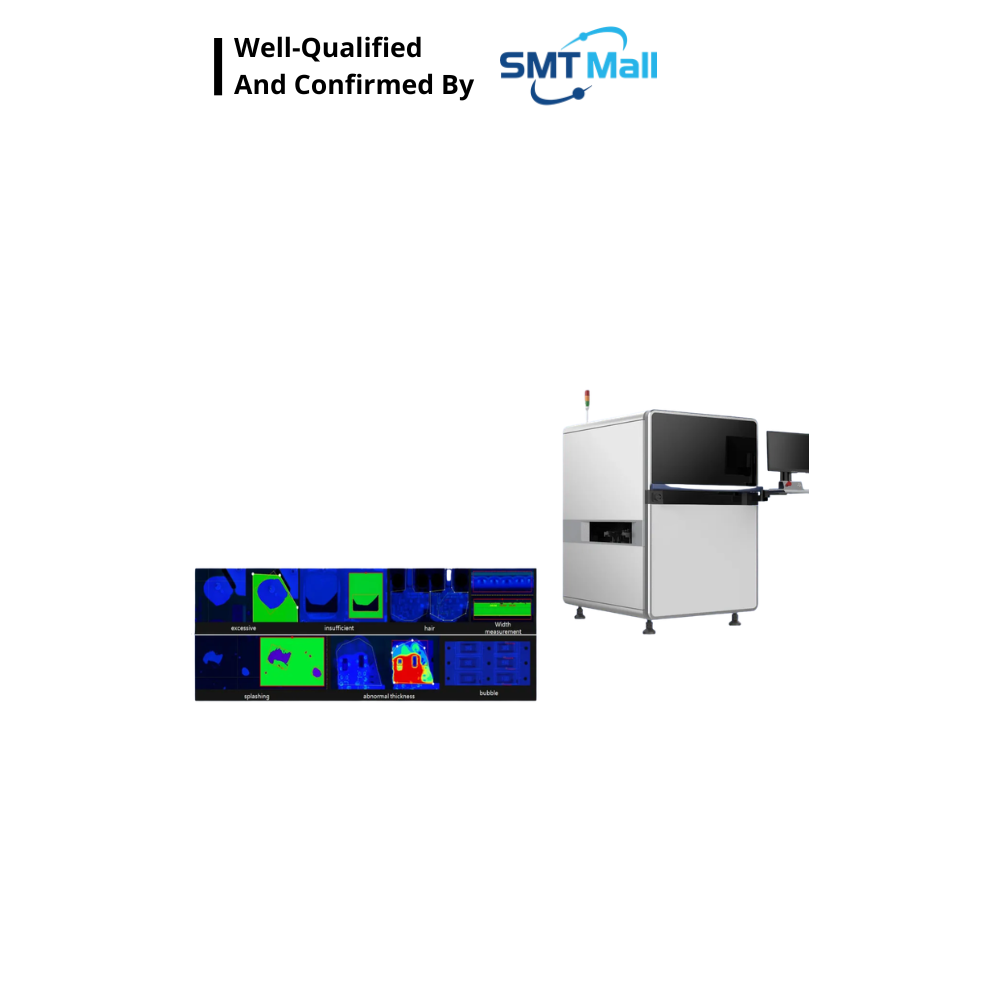

   Defect Type	No Coating, Coating Insufficiency, Bubbles/Void, Smear, Coating Delamination
   MEASUREMENT (3D ACI ONLY)
   Conformal Coating Thickness	10 – 600 μm
   SYSTEM DIMENSION
   Power Requirements	Single Phase(s) 200~240V 50~60Hz, 1.1 KW
   Air Requirements	5 Kgf/cm² (0.5 Mpa)
   Dimension (WxDxH)	1240 x 1495 x 1650 mm (Including Signal Tower: 1240 x 1495 x 2080 mm)
   Weight	Approx. 760 Kg
   OPTION
   Repair	O
   SPC	O
   Barcode	1D and 2D
