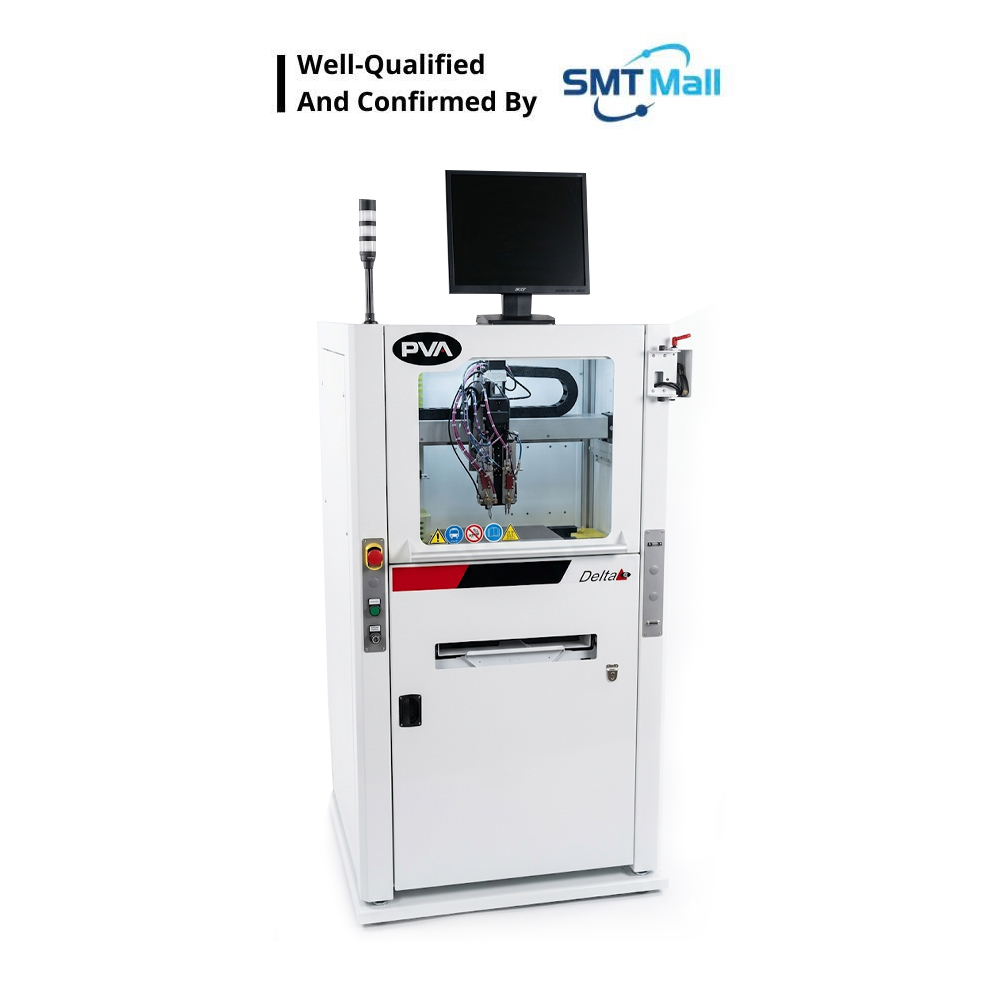

Product overview

The Selective Coating Machine is an advanced system designed for precise, automated coating and fluid dispensing in electronic manufacturing. Built on a rigid three-axis motion platform, it delivers consistent, repeatable performance for applications that require high accuracy, process control, and flexibility.

This system supports selective conformal coating, potting, bead, and meter-mix dispensing with a variety of materials, including acrylic, silicone, polyurethane, and UV coatings. The machine can be configured for both inline and batch operations, making it suitable for medium to high-volume production lines.

Equipped with closed-loop servo motors, optical encoders, and intelligent process control, the system ensures precise coating thickness, uniform coverage, and stable operation even under demanding conditions.
Optional features such as tilt-and-rotate 4th-axis motion, active vision alignment, and substrate heating further enhance flexibility when dealing with complex geometries or sensitive components.

The integrated PathMaster® software allows for easy offline programming, image-based path generation, and automatic program adjustment. Users can quickly set up coating patterns—dots, lines, curves, or complex shapes—directly from CAD or image files, significantly improving efficiency and reducing setup time.

With its robust construction, closed-loop motion control, and user-friendly software interface, this automated system offers manufacturers a cost-effective and high-precision solution for a wide range of dispensing and conformal coating applications.

       Technical specifications

Work Area (1 Valve / Tool): 621 mm × 595 mm × 100 mm
Payload Capacity: 11.36 kg
Repeatability: ±25 μm
Resolution: 5 μm
Maximum Speed: 670 mm/sec
Acceleration: 0.6 g

Motion System: Closed-loop brushless DC servo motors with optical encoders and precision ball-screw slides

Power Requirements: 120V / 220V, 50–60 Hz
Air Requirements: 80 psi dry
Footprint: 1270 mm × 973 mm × 2222.6 mm
Weight: Approx. 800 kg

Conveyor System:

• Flat belt or chain conveyor (SMEMA compatible)
• Min. width: 50 mm / Max. width: 500 mm
• Conveyor speed: up to 24.4 m/min
• Top clearance: 100 mm / Bottom clearance: 100 mm
• Bidirectional process flow (R→L or L→R)

Software:

• PathMaster® / PathMaster X for offline programming
• Windows-based operation
• Touchscreen and teach pendant control
• USB communication, low-level exhaust and fluid monitoring

Optional Features:

• • 4th-axis valve tilt and rotation
  • Closed-loop material flow monitoring
  • Inline material metering and barcode selection
  • Valve and fluid heating, substrate heating
  • Active vision with XY correction

• Weigh scale and multi-zone conveyor

Compatible Fluid Applicators

• Spray Valves: FCS300-ES, FCS300-R/F, FC100-CF
• Dispense Valves: FC100-MC, FCM100, SB300
• Jetting Valve: JDX
• Auger Valves: SV200, SVX
• Progressive Cavity Pumps: PCP, PDP

Material Feed Options: Pressure vessels, drums, totes, syringes (1–55 cc), or cartridge feed (6–20 oz)
