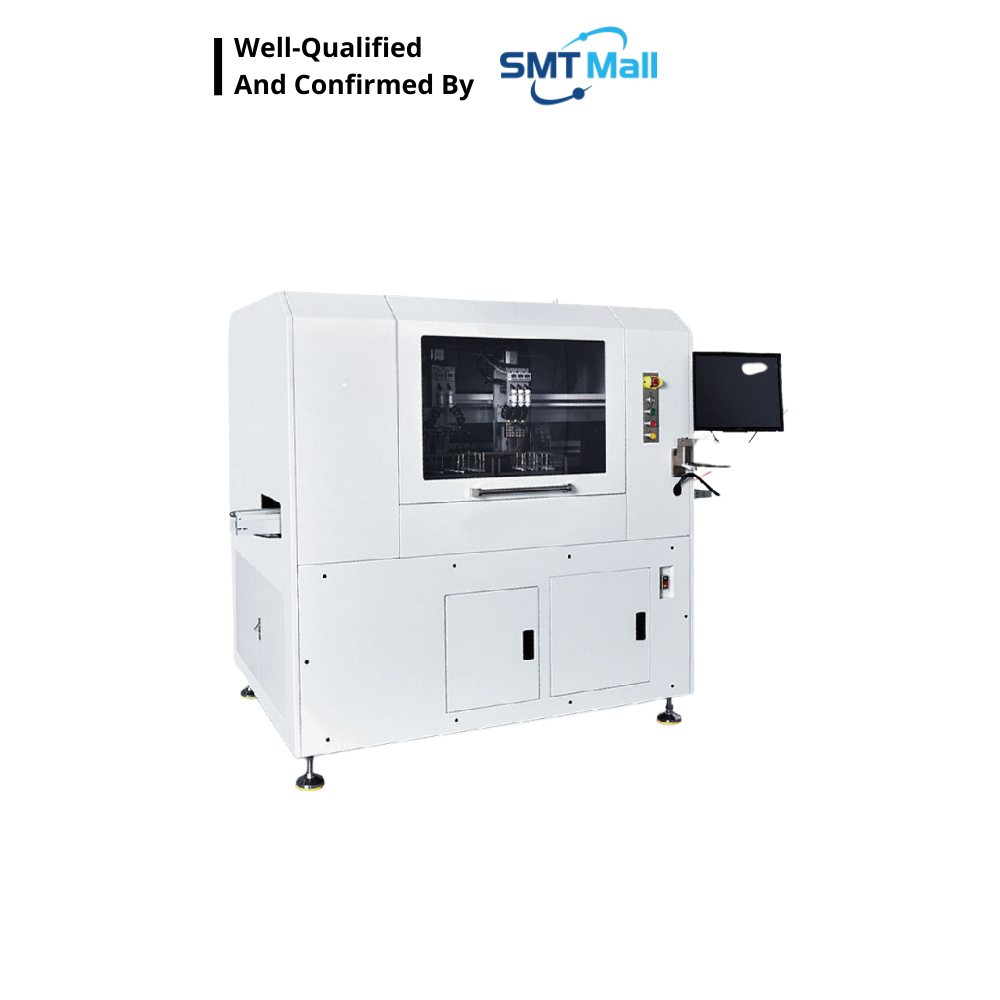

Product overview Inline PCB Router

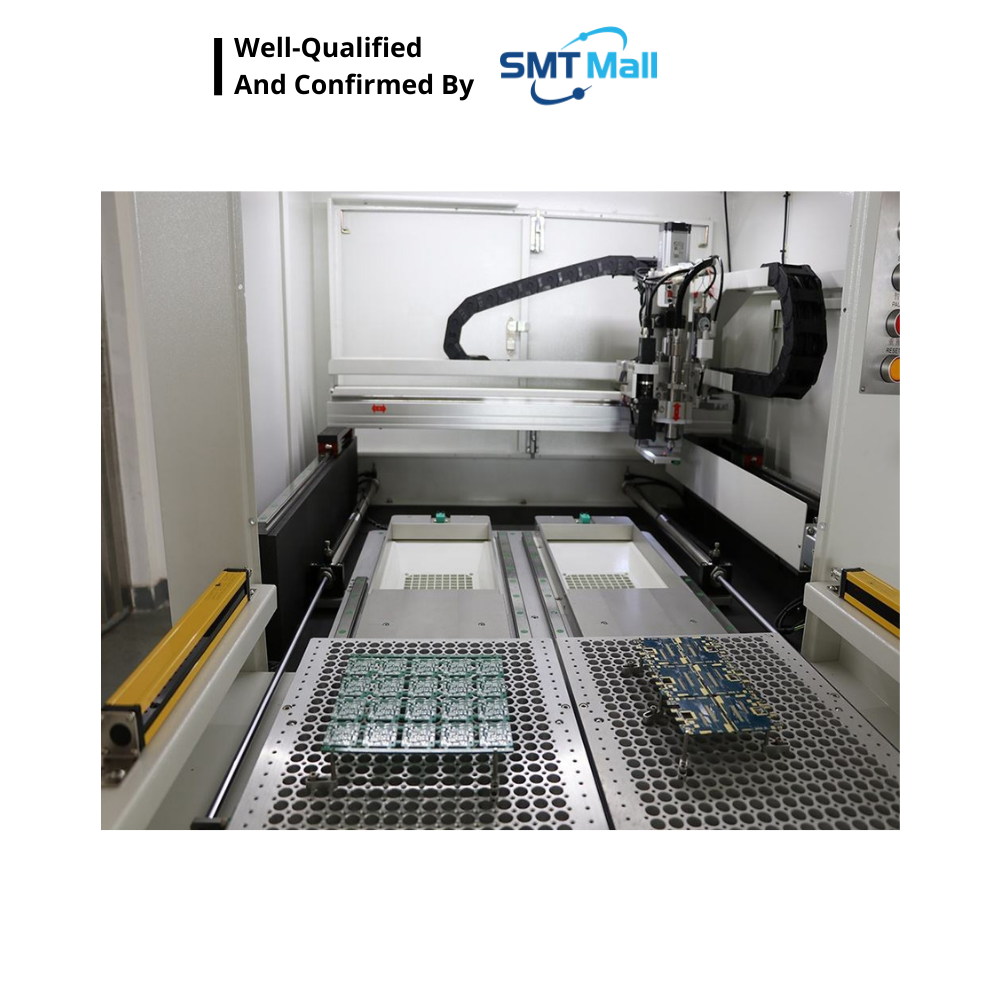

The In-line PCB Router Machine is an advanced, fully automated depaneling solution designed for continuous production in modern SMT assembly lines. Featuring a high-precision CCD vision system, dual working platforms, and automatic board handling, it delivers fast, accurate, and stress-free PCB separation with minimal operator intervention.

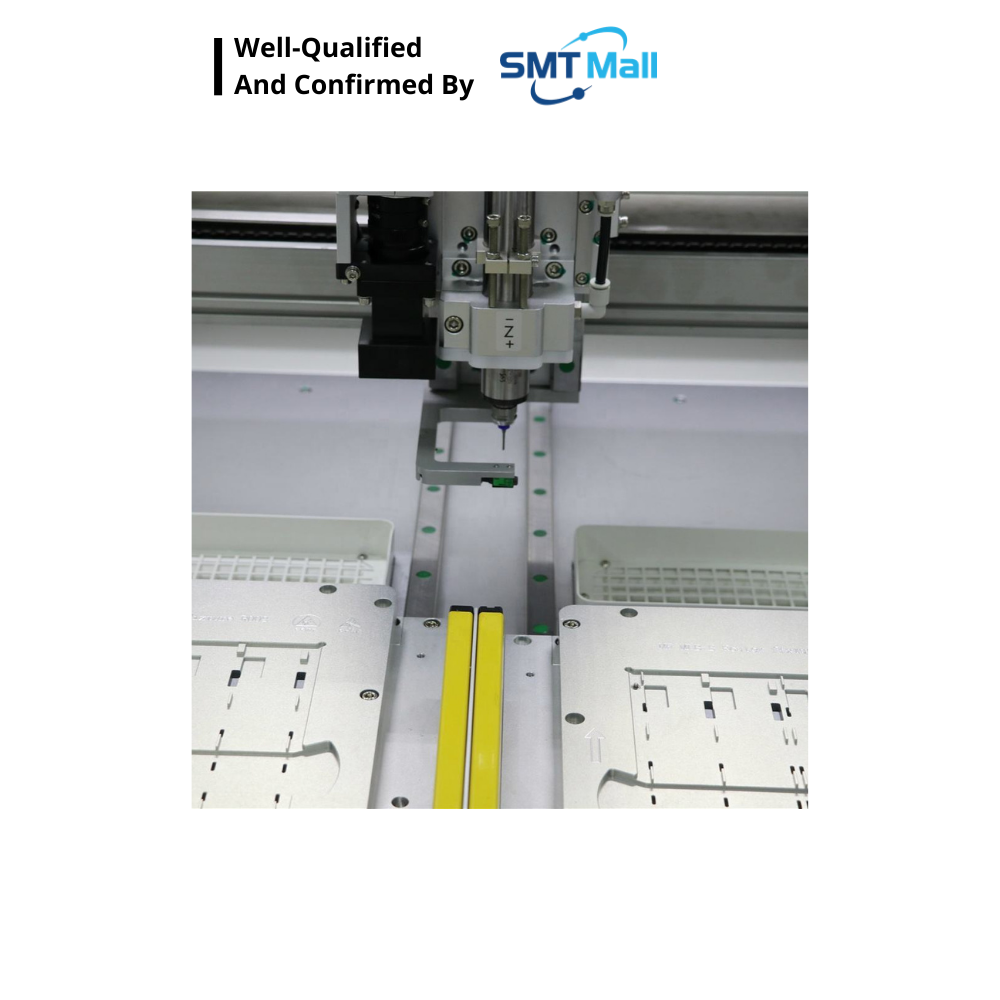

This router integrates seamlessly with SMT lines, supporting automatic loading, cutting, and unloading processes. Equipped with a real-time spindle monitoring sensor, ion air gun, and efficient vacuum dust collection system, it ensures consistent cutting quality, reduced tool wear, and a clean working environment.

With MES/ERP connectivity, barcode scanning options, and automatic product data management, the system brings true intelligence and flexibility to PCB depaneling—helping manufacturers save labor costs, increase productivity, and ensure high-quality output for mass production.

Technical specifications

Item	Specification
PCB Size (Special size optional)	300 × 350 mm
PCB thickness	0.3–6.0 mm
Operation and Data Storage	PC System
Dimension	1930 × 1350 × 1700 mm
Weight	1100 kg

Dust collector

Item	Specification
Dust Collection Method	Vacuum cleaning
Air volume of vacuum cleaner	12–20 cm³/min
Vacuum cleaner Dimension	750 × 600 × 620 mm
Voltage of the Dust Collector	380V, 50/60Hz, 1.2 kW

Applications

• SMT Assembly Lines: Continuous in-line depaneling of assembled PCBAs with precise and low-stress cutting.

• Consumer Electronics & Automotive Electronics: Ideal for high-precision boards with sensitive components.

• Industrial Control & Communication Equipment: Suitable for complex PCB shapes and multi-layer designs.

• High-Volume Manufacturing: Dual-platform and in-line automation improve throughput and process efficiency.

• MES-Integrated Smart Factories: Supports real-time production monitoring, data traceability, and quality management through MES or ERP system integration.
