CHUERA 6202B Ionizing Air Gun – 4600V Static Elimination
$ 77.00
United States dollar ($) - USD
EXW Factory
Final quotation is subject to final confirmation and specifications.

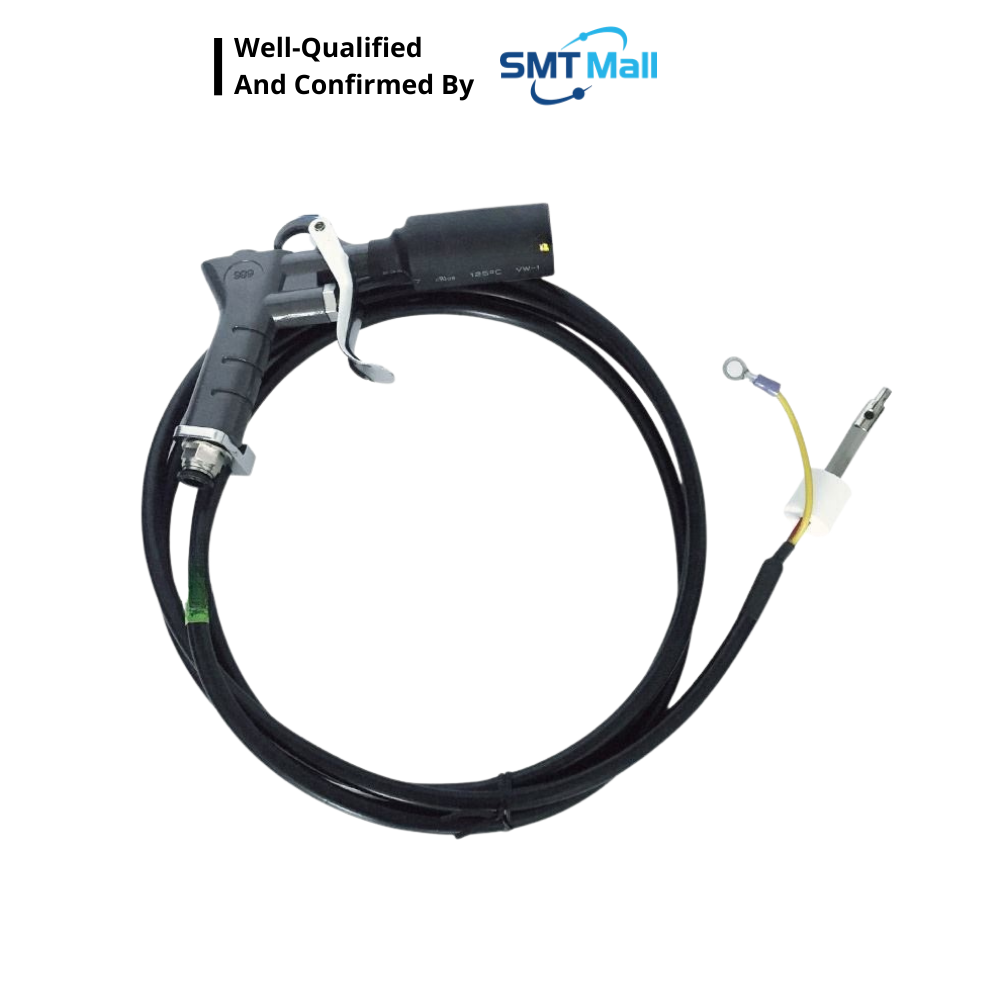

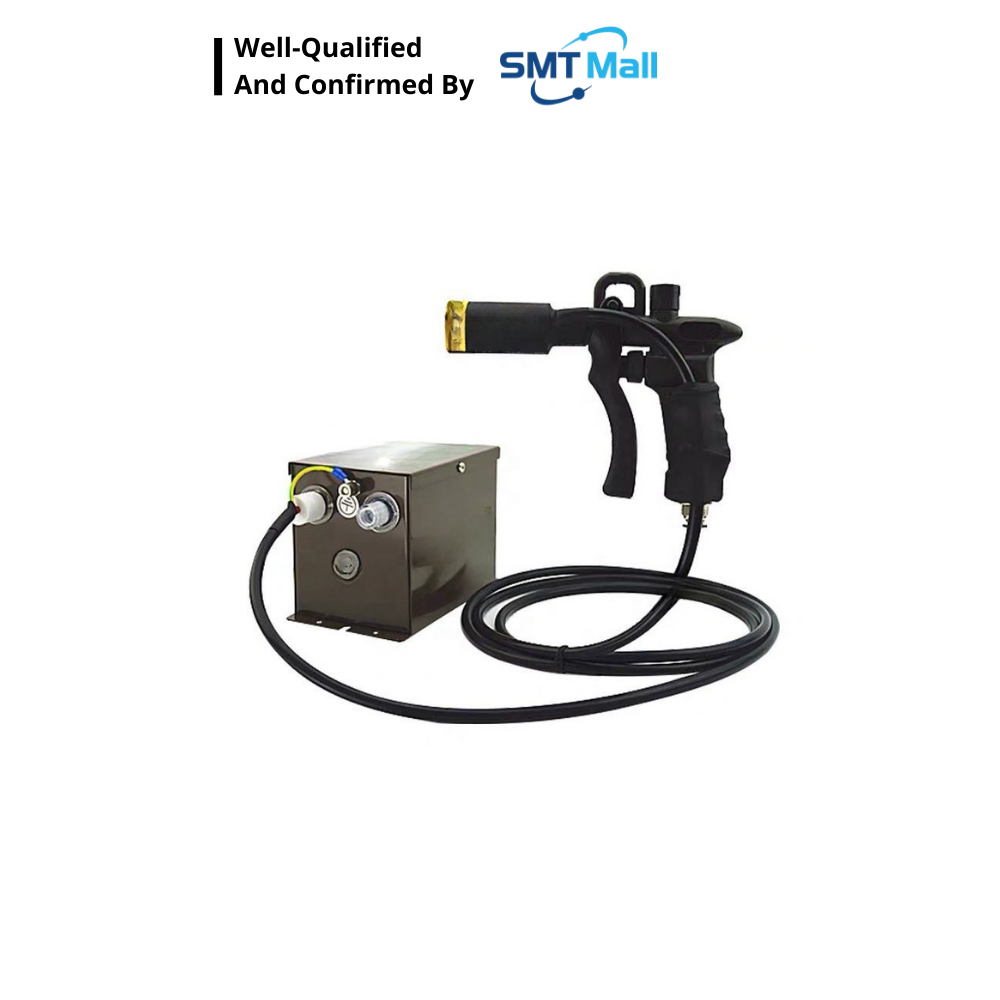

The CHUERA 6202B is a high-performance ionizing air gun with a horizontal air outlet design, engineered for ultra-fast static discharge and efficient surface cleaning. It neutralizes static electricity in as little as 0.8 seconds while delivering high-velocity airflow (>10 m/s) to remove dust and fine particles simultaneously.
The unit is well suited for electronic manufacturing lines, precision components, and ESD-controlled environments where static control and cleanliness are both critical.
Key Features CHUERA 6202B:
-
Rapid static elimination within 0.8 s at 150 mm distance
-
High air velocity >10 m/s for effective dust removal
-
Operating air pressure 40–70 psi, stable and powerful output
-
Ergonomic handle design for comfortable long-term operation
-
3 m high-voltage cable (custom length available)
-

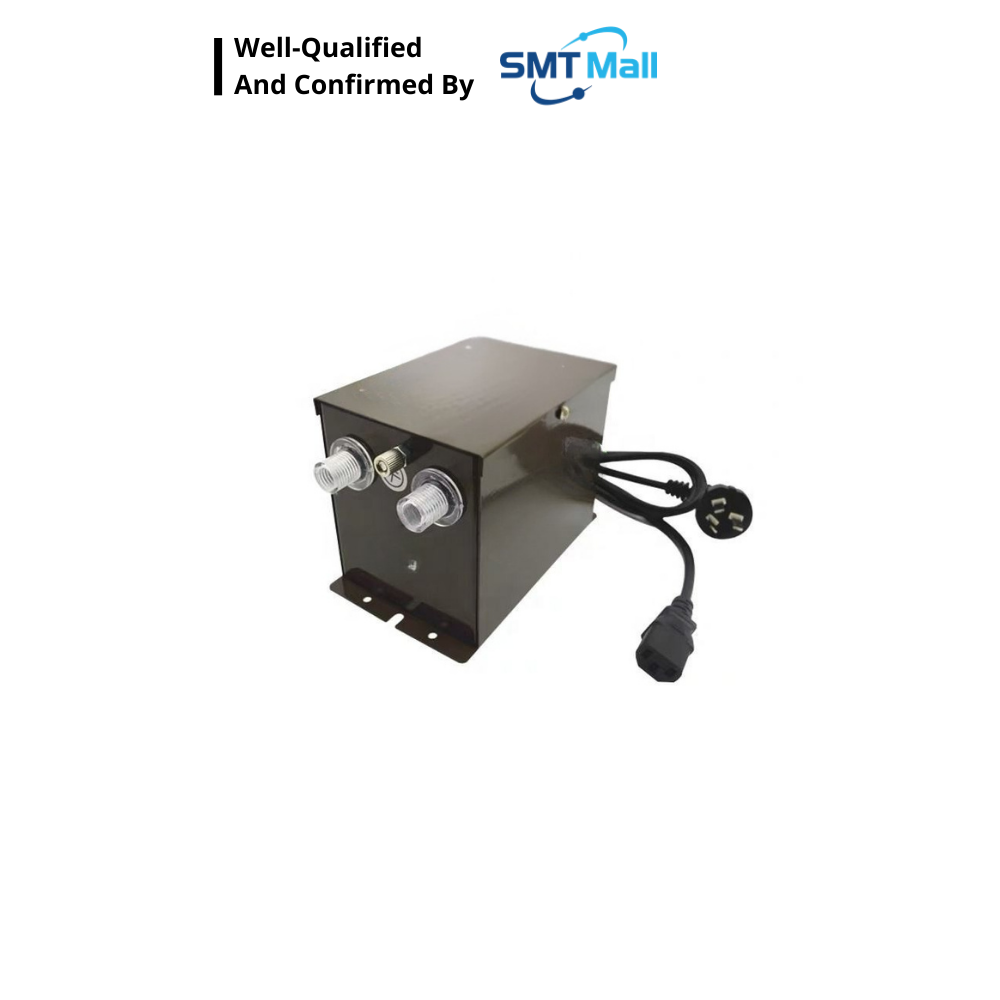

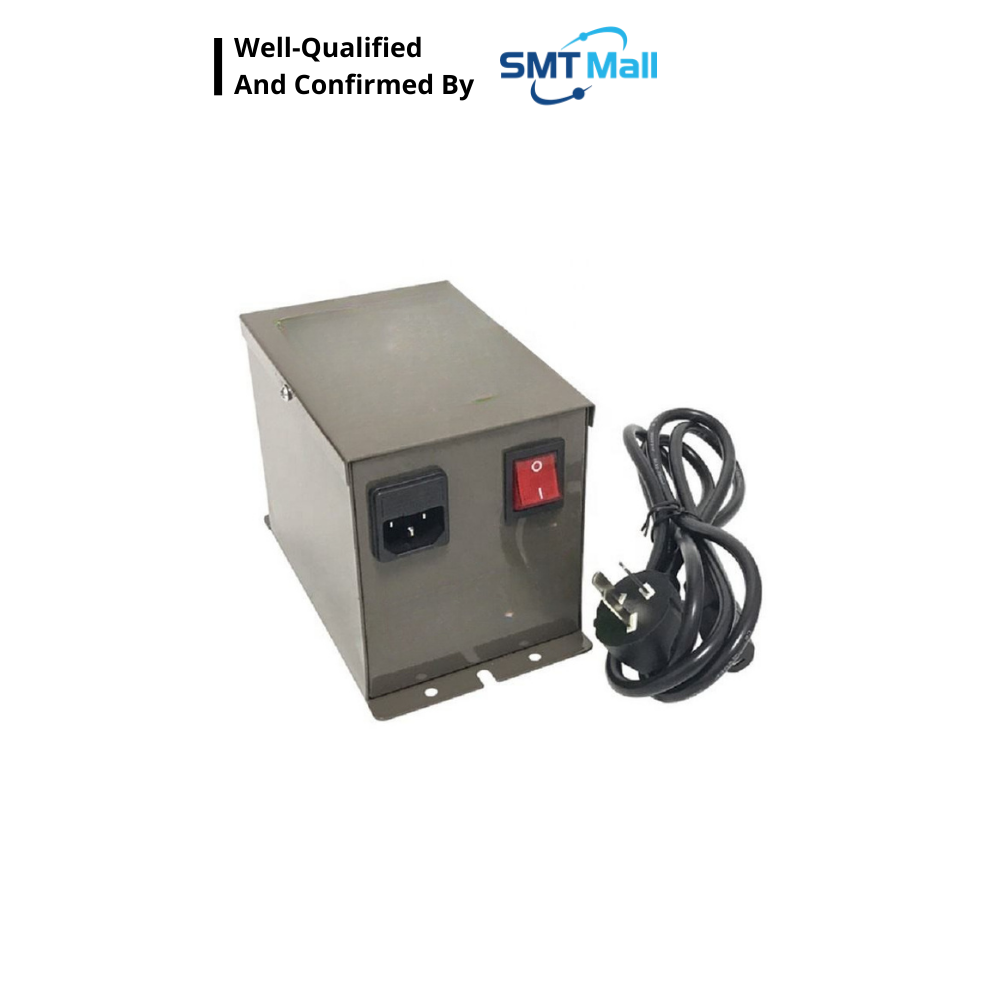

One power supply can operate up to two air guns simultaneously
Technical Specifications:
-
Operating voltage: 4600 V
-
Current consumption: 200 μA
-
Operating temperature: 0–50°C
-
High-voltage cable length: 3 m (customizable)
-
Required air pressure: 40–70 psi
-
Airflow velocity: >10 m/s
-
Ion balance: 0 V ±35 V
-
Neutralization time: 0.8 s
-
Residual voltage after discharge: ±35 V
-
Standard effective distance: 150 mm
Typical Applications:
-
SMT and electronic component production lines
-
Static and dust removal in plastics, packaging, and printing industries
-
Surface cleaning prior to packaging, coating, or painting processes
See also: CHUERA 8502D Hot Air Rework Station , JIT-Asia
Product Manual
Catalogue Chuera
